Posted - 07/08/2013 : 23:04:19
The GQ-4X supports most of the Macronix branded chips, but it doesnt have the MX29F1610 listed. It is pinout compatible with the MX29L3211 chip (minus the A20 pin), so is there something I can add to the device.txt to add support for this chip? |
| 59 L A T E S T R E P L I E S (Newest First) |
| anniel |
Posted - 04/24/2023 : 06:13:01
quote:
Originally posted by Bogdanval
Can I contact Administration?
It is about advertisement on your website.
Thank.
https://www.mcumall.com/store/index.php?route=information/contact |
| anniel |
Posted - 04/24/2023 : 06:11:58
quote:
Originally posted by Bogdanval
Where is moderator??
I'ts important.
Regards.
Right here. |
| Bogdanval |
Posted - 04/23/2023 : 21:04:52
Can I contact Administration?
It is about advertisement on your website.
Thank. |
| Bogdanval |
Posted - 04/23/2023 : 17:30:21
Where is moderator??
I'ts important.
Regards. |
| 22asd |
Posted - 05/24/2019 : 20:46:38
Cant get it to burn..did everything it said
Image Insert:
63249 bytes
Image Insert:
44740 bytes |
| anniel |
Posted - 04/06/2019 : 02:52:08
quote:
Originally posted by 22asd
Going to be burning some next, I will let you know how that goes. I dont think there will be any problems, Ill keep you posted.
Good. Thank you. |
| 22asd |
Posted - 04/06/2019 : 02:22:10
Going to be burning some next, I will let you know how that goes. I dont think there will be any problems, Ill keep you posted. |
| anniel |
Posted - 04/03/2019 : 03:56:21
quote:
Originally posted by 22asd
Got that number? I assume that it has been resolved to some extent. There seems to be an addition of the chip to some extent as well as an image to show how to setup the adapter to flash it. Right?
http://www.mcumall.com/store/index.php?route=information/contact |
| 22asd |
Posted - 04/01/2019 : 22:49:57
Got that number? I assume that it has been resolved to some extent. There seems to be an addition of the chip to some extent as well as an image to show how to setup the adapter to flash it. Right? |
| anniel |
Posted - 03/31/2019 : 04:28:26
quote:
Originally posted by 22asd
Any news on this or is ZLM still waiting for donor chips?
You should give a call to MCUMall. |
| 22asd |
Posted - 03/30/2019 : 21:29:55
Any news on this or is ZLM still waiting for donor chips?
|
| Ice Man |
Posted - 02/16/2018 : 07:38:11
Don't have any since I've been waiting for this chip to be supported. Even requested it via software long time ago but nothing was done yet. :( |
| anniel |
Posted - 02/16/2018 : 04:15:01
quote:
Originally posted by Ice Man
Any news on this?
Someone sent a chip to ZLM for testing? |
| Ice Man |
Posted - 02/16/2018 : 02:42:45
Any news on this? |
| kodyk17 |
Posted - 07/21/2017 : 08:51:38
Is this how the adapter should look to get it to write? I'm close I just need a little advice please.
https://www.hostingpics.net/viewer.php?id=420747DSC01317.jpg |
| kodyk17 |
Posted - 07/20/2017 : 18:20:55
I'd like to know how this can be programmed on Willem GQ-4x I have an ADP-019 v4.1 adapter and MX29F1610-10 chips. I've tried using this device.
Name="MX29F1610T*PSOP44",ID="C2F1",Class="MX29L3211",CodeSize="2097152",Category="FLASH",MFG="Macronix",Adapter="ADP-019 V4",VCC="5V",RVpp="5V",TempUnprotect="Yes,False",Platform="GQ-4X",Message="Set the adapter to 5V jumper position. J2 on 28F, J1 on 29LV160 positions";
Can get chip to ID, ERASE, and Blank Check with J1 and J2 set for 29L3211. I connected a resistor between pin 44 (WP) to +5 on the adp adapter and I still cannot get it to write. Is there anyone that can help resolve this long running issue?
|
| Ice Man |
Posted - 05/15/2017 : 03:54:15
Any news for this? I'd like to program MX29F1610MC as well but it doesn't work. |
| Rodragon |
Posted - 07/14/2016 : 09:28:28
So we have a solution for this? Can anyone post an image of the adapter ready to burn the 29F1610? |
| anniel |
Posted - 05/28/2016 : 07:05:20
Yes a pull-up resistor.
https://es.wikipedia.org/wiki/Pull-up |
| Jarryson |
Posted - 05/28/2016 : 05:31:29
quote:
Originally posted by anniel
Yes WP = Write Protect on your MX29L1610. Is your MX29L1610 5V?
You need to pull it high.
I havent tried it yet. But I dont understand, 6k8 between 5V and WP ? |
| anniel |
Posted - 05/28/2016 : 03:32:34
Yes WP = Write Protect on your MX29L1610. Is your MX29L1610 5V?
You need to pull it high. |
| Jarryson |
Posted - 05/27/2016 : 18:15:27
quote:
Originally posted by anniel
WP pin.
I dont understand, sorry.
WP = Write Protect? what is this pin in the adapter adp 019?
Resistor have to go between 5V and WP ?
Thanks. |
| anniel |
Posted - 05/27/2016 : 16:49:47
WP pin. |
| Jarryson |
Posted - 05/27/2016 : 16:13:05
Hi,
where I have to set the 6k8 resistor? I want to read/write MX29L1610.
Regards. |
| anniel |
Posted - 01/02/2016 : 11:01:24
Someone sent a chip to ZLM for testing? |
| Rodragon |
Posted - 01/02/2016 : 09:11:26
Any News about this?
Tryed all sollutions from the topic, but no success... |
| RedScorpion |
Posted - 02/15/2015 : 03:23:20
h**p://www.ezoflash.com/scriptdapters/psop44c1/schematic.htm
Remove the ** and pay attention the h**p:// is used
|
| ramparts |
Posted - 02/14/2015 : 18:57:38
hi guys,
maybe i find a way to solve this issue.
Ezoflash has a adapter which is almost the same lime the adp-19 from gqx4.
In this schematic he uses one 6k8 resistor to VCC to set the WP Pin to high i think.
Could anyone check this?!
Set the same settings from 29L3211 chip and solder a 6k8 resistor to VCC.
h**p://www.ezoflash.com/scriptdapters/psop44c1/schematic.htm
thanks
red
Link not Available |
| RedScorpion |
Posted - 02/14/2015 : 02:26:13
hi guys,
maybe i find a way to solve this issue.
Ezoflash has a adapter which is almost the same lime the adp-19 from gqx4.
In this schematic he uses one 6k8 resistor to VCC to set the WP Pin to high i think.
Could anyone check this?!
Set the same settings from 29L3211 chip and solder a 6k8 resistor to VCC.
h**p://www.ezoflash.com/scriptdapters/psop44c1/schematic.htm
thanks
red |
| ramparts |
Posted - 01/31/2015 : 11:56:32
So basicaly an expensive Copy of the original
they should have copied better
They told they were go tho see what is wrong but i doubt ,i will put it work ok.
If the shipping cost werenīt so expensive for my country i would buy the official from McuMall
thank you very much for your Help |
| ZLM |
Posted - 01/29/2015 : 23:16:02
The adapter you used is not tested and confirmed by MCUmall on GQ-4X. The correct adapter for this chip from MCUmall is ADP-019 V4.
http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=4561 |
| ramparts |
Posted - 01/27/2015 : 16:35:36
wELL i have a willem and i recently i bought a gq-4x ,strangely just the old dog true willem 4.5c has been efective on reading all tipes of chips,i had an usue that gq-4x didnīt read a clone chip of 27c4001 and the willem did maybe because of the code id ,if the programmer canīt detect a valid cod id from the manufacturer wonīt read the chip,i think that could be the cause.
i had bought a gq-4x serial adapter and this from the net
h**p://www.ebay.com/itm/PSOP44-V4-for-AM29LV160-MX29L3211-PSOP44-DIP44-programmer-adapter-converter-/221498913746?ssPageName=ADME:X:RTQ:US:1123
this till now seems a copy adapter for 29lv160 and i couldnīt get it to read neither one of my 10 new 29lv160tmc-90 chips.
what i mean is that in some cases the old hardware donīdisappoint ,and makes me wonder if is a good idea to spend about 60 euros on a new willem programmer.
Because you pay money and get bad results ,and in some cases low or no support..
Sory my bad english
Best Regards
JOSÉ |
| ZLM |
Posted - 01/27/2015 : 11:24:09
The 5V jumper on adapter means adapter has no control on VCC. The VCC controlled by programmer.
In this case, the programmer is going to adjust the VCC to 3.6V.
The 5V/3.6V VCC jumper on adapter has its story, it mainly for a backward compatibility design. The old Willem programmer has no automatic VCC control, all the voltages controlled by combination of jumpers, include the adapter VCC jumper.
The GQ-4X has automatic VCC control. So, it adjusts the VCC based on the chip voltage. But all adapters are compatible with old willem programmer.
|
| ramparts |
Posted - 01/26/2015 : 18:06:43
One thing i notice is when you put the 29lv160 adapter it tells to active the 5 volt ,but you can see that the chip i am using the 29lv160tmc-90 is a 3.0-3.6v chip so how the programmer tells me to activate the 5volt jumper on the adapter?
With the 5v active reads but donīt write ,meanwhile i will try to set 3.3v jumper to see if i can program the chip.
see datasheet:
h**p://pdf1.alldatasheet.com/datasheet-pdf/view/74522/MCNIX/MX29LV160TMC-90.html |
| goul-patrol |
Posted - 11/06/2014 : 04:24:52
have You some news ?
for the MX29F1610. |
| goul-patrol |
Posted - 07/05/2014 : 03:18:00
it would still be nice to have an answer as what the problem is treated |
| goul-patrol |
Posted - 07/01/2014 : 13:25:18
Hello,
Can I caress the soft dream that one day close enough my problem is a solution, support this software eprom level? |
| goul-patrol |
Posted - 06/28/2014 : 00:53:43
harf no MX29F1610 on the new software 6,29 :) |
| goul-patrol |
Posted - 05/24/2014 : 08:39:31
some news for it ????????????????? |
| goul-patrol |
Posted - 04/15/2014 : 11:38:02
have you some news ? |
| goul-patrol |
Posted - 01/31/2014 : 16:11:13
i have try it pin 44 to VCC 5 v no result :( |
| ZLM |
Posted - 01/29/2014 : 17:00:49
Yes. I read that, the only difference is the Pin 44. The MX29F1610 Pin 44 is WP- and it needs to be connected to the VCC of the chip when erase and write.
Other than that, all commands and pins are same.
Therotically it should work. Since your test fail, so I need a chip to find out why.
You can still try to connect that chip pin 44 to the VCC 5V pin on adapter and see if it makes different.
The picture is connect the Pin 44 to the programmer WP pin. |
| goul-patrol |
Posted - 01/29/2014 : 14:37:22
:(
i think is the pinout rewiring because if you compare the 29l3211 and the 29f1610 data sheet you see
h**p://www.buyicnow.com/files/datasheet/EEPROM/193.pdf
h**p://www.ezoflash.com/datasheets/flash/Macronix/MX29F1610.pdf
h**p://www.hostingpics.net/viewer.php?id=48178029l3211and29f1610.png
|
| ZLM |
Posted - 01/29/2014 : 14:25:20
Well, I thnk I need a testing chip in order to find out why. |
| goul-patrol |
Posted - 01/29/2014 : 14:18:09
i have tested on other pc with windows xp 32 bit
with the temp unprotected checkbox
usbprog6.27 i have make the wiring :

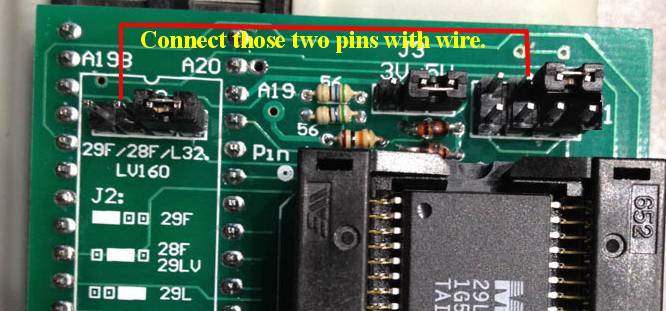

http://www.mcumall.com/support/MX29F1610_OnV4.jpg
id is good but no prog no erase ... |
| ZLM |
Posted - 01/29/2014 : 09:52:13
It should always there.
No, you do not need to reinstall, this checkbox will be enabled after you select the chip from the device list. |
| goul-patrol |
Posted - 01/29/2014 : 02:40:30
i haven't this this part of sofware are blank ?
i have windows 7 pro 64 bit the software give me the good hardware rev and software but i think i have bug how to make a cleaning intall remove all and reinstall it ? |
| ZLM |
Posted - 01/28/2014 : 23:36:27
does read work?
check the Temp Unprotect checkbox.
Image Insert:
4.06 KB |
| goul-patrol |
Posted - 01/28/2014 : 23:02:56
hello,
with usbprog6.27 the id is good i have make the wiring :
http://www.mcumall.com/support/MX29F1610_OnV4.jpg
but prog and erase are not good :( i think the pinout is not good some one can tell me the j1 and j2 exactelly rewire . |
| goul-patrol |
Posted - 01/28/2014 : 02:38:54
i try it and give you the result ;) |
| ZLM |
Posted - 01/27/2014 : 18:17:08
try this version.
http://www.mcumall.com/download/TrueUSBWillem/USBPrgSetup6.27.exe
Chip is added. But not tested. |
| goul-patrol |
Posted - 01/27/2014 : 00:45:42
nobody can reply the good way on gq4x with adaptor adp-019 v4 to burn Mx29f1610mc ? |
| goul-patrol |
Posted - 01/26/2014 : 02:07:55
i want burn MX 29f1610MC i have adaptor adp-019 v4
i take this:
Name="MX29F1610T*PSOP44",ID="C2F1",Class="MX29L3211",CodeSize="2097152",Category="FLASH",MFG="Macronix",Adapter="ADP-019 V4",VCC="5V",RVpp="5V",TempUnprotect="Yes,False",Platform="GQ-4X",Message="Set the adapter to 5V jumper position. J2 on 28F, J1 on 29LV160 positions";
But it's not good the j2 on 28f return unkown id, but j2 on 32l return the good id .
i think j1 on 29lv160 is not good , because i have no erase and no prog ? |
| ZLM |
Posted - 01/25/2014 : 20:43:28
What config? Can you read it? |
| goul-patrol |
Posted - 01/25/2014 : 07:28:33
Name="MX29F1610T*PSOP44",ID="C2F1",
with this id are correct but config not ! |
| goul-patrol |
Posted - 01/25/2014 : 07:03:44
is it good for id and config ?
h**p://hpics.li/9d1c6d9
you can see :
Manufacturer Code : C2H
MX29F1610 Device Code : F1H
i have error erase .
|
| ZLM |
Posted - 07/15/2013 : 09:55:15
Try:
Name="MX29F1610T*PSOP44",ID="C2FA",Class="MX29L3211",CodeSize="2097152",Category="FLASH",MFG="Macronix",Adapter="ADP-019 V4",VCC="5V",RVpp="5V",TempUnprotect="Yes,False",Platform="GQ-4X",Message="Set the adapter to 5V jumper position. J2 on 28F, J1 on 29LV160 positions";
Name="MX29F1610B*PSOP44",ID="C2FB",Class="MX29L3211",CodeSize="2097152",Category="FLASH",MFG="Macronix",Adapter="ADP-019 V4",VCC="5V",RVpp="5V",TempUnprotect="Yes,False",Platform="GQ-4X",Message="Set the adapter to 5V jumper position.J2 on 28F, J1 on 29LV160 positions"; |
| Bad_Ad84 |
Posted - 07/14/2013 : 22:46:56
He said MX29F1610 not the MX29L161
The 29F161 is a 5v chip, not 3.6 |
| ZLM |
Posted - 07/10/2013 : 18:53:20
Yes. You can try:
Name="MX29L1610T*PSOP44",ID="C261",Class="MX29L3211",CodeSize="2097152",Category="FLASH",MFG="Macronix",Adapter="ADP-019 V3",VCC="3.6V",RVpp="5V",TempUnprotect="Yes,False",Platform="GQ-4X",Message="Set the adapter to 5V jumper position. Jumper on 29L3211 positions";
Name="MX29L1610B*PSOP44",ID="C262",Class="MX29L3211",CodeSize="2097152",Category="FLASH",MFG="Macronix",Adapter="ADP-019 V3",VCC="3.6V",RVpp="5V",TempUnprotect="Yes,False",Platform="GQ-4X",Message="Set the adapter to 5V jumper position. Jumper on 29L3211 positions";
|
