Hiho!

I opened my Top2049 (curiousity won... - warranty lost ;) - and did some images. There is nothing special inside, most special parts are:

Xilinx Spartan XC2S15
89C52RC

The rest is boring ;)

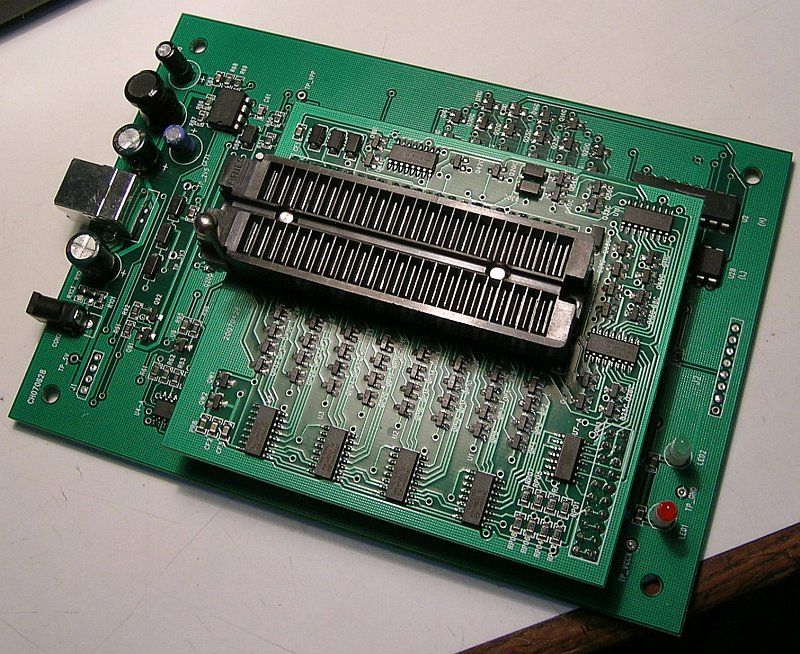

Both panels:


197.32 KB
Edited by - pH03N1xM on 04/08/2008 09:22:52
Reply #1

pH03N1xM

Hungary
11 Posts
Posted - 04/08/2008 :  06:55:09  Show Profile

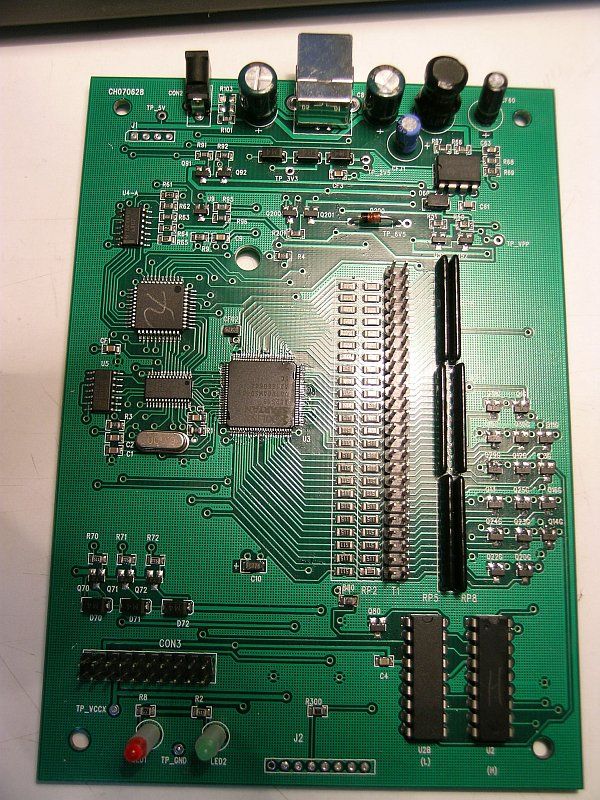

Main
panel:


195.08 KB
Edited by - pH03N1xM on 04/08/2008 06:59:47
Go to Top of Page
Reply #2

pH03N1xM

Hungary
11 Posts
Posted - 04/08/2008 :  06:56:31  Show Profile

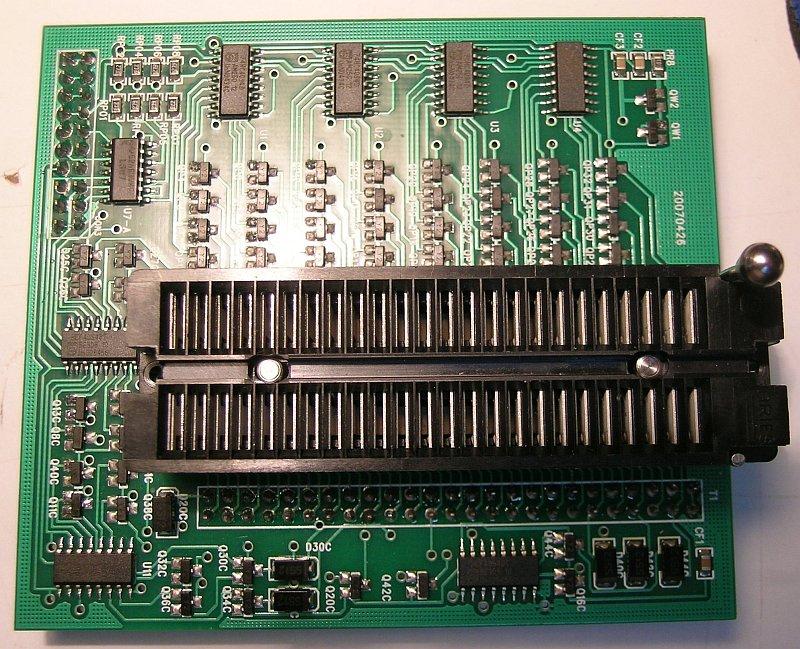

ZIF socket panel:


189.33 KB
Edited by - pH03N1xM on 04/08/2008 07:00:13
Go to Top of Page
Reply #3

pH03N1xM

Hungary
11 Posts
Posted - 04/08/2008 :  06:59:00  Show Profile
Both panels -
separated:


150.54 KB
Edited by - pH03N1xM on 04/08/2008 07:00:29
Go to Top of Page
Reply #4

simeon

United Kingdom
79 Posts
Posted - 04/24/2008 :  07:21:27  Show Profile
curiosity top'd the cat

nice to see whats inside
thanks

now i dont have to open mine up.....
