xoom

Lithuania
4 Posts
Posted - 10/07/2009 :  15:23:14  Show Profile
Hello,

I am new here. And first thing i want to say that this forum awesome:)

I'm using TOP2049 programmer .. trying to program ATMega162 TQFP44 package.. and need to put adapter SDP-UNIV-44TQ but this adapter is almost 2x expensive than this programmer :) so i want to make adapter by my self.. actuay i'm already made one but its seems not working .. i just made 1:1 pins like ordinary DIP.. so my question is:

Maybe someone have this adapter or schematic how it looks.. which pin goes where? :)

Sorry for my English.:)

Regards.
Reply #1

ZLM

2945 Posts
Posted - 10/17/2009 :  10:11:25  Show Profile

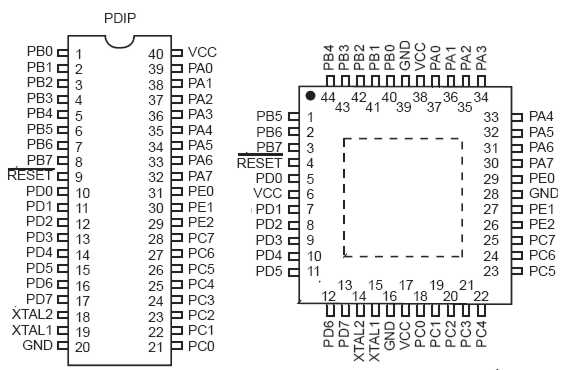

map the DIP pin name to QFP pin name. NOT pin number

eg. DIP pin 1 to QFP pin 40


Image Insert:

36.94 KB
Go to Top of Page
Reply #2

xoom

Lithuania
4 Posts
Posted - 10/18/2009 :  04:05:13  Show Profile
Thanks a lot :)
Go to Top of Page
Reply #3

elessChefly

Mexico
4 Posts
Posted - 12/18/2012 :  22:46:06  Show Profile
Finding within Cina is expected to stay immobile as the great coming through market will continue to show indications of decreasing.
