eliotroyano

27 Posts
Posted - 05/19/2010 :  17:38:45  Show Profile
Hi friends. As the title says, I need the pinout of the PSOP44 socket that comes in the PSOP44 adapter for GQ-3x and GQ-4x programmer.

Image Insert:

14.66 KB

This one:http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=3149

I appreciate your help.

Thanks,
Reply #1

ZLM

2945 Posts
Posted - 05/19/2010 :  19:33:49  Show Profile
see AM29F800 chip datasheet for pinout.
Go to Top of Page
Reply #2

eliotroyano

27 Posts
Posted - 05/20/2010 :  13:12:22  Show Profile
Thanks a lot for your help ZLM, I understand you, but I need the pinout of the PSOP44 socket not the flash memory itself. I mean the socket is connected to the board by two double rows of pins, that is the pinout that I need. Thanks,
Edited by - eliotroyano on 05/20/2010 13:16:24
Go to Top of Page
Reply #3

ZLM

2945 Posts
Posted - 05/21/2010 :  17:44:51  Show Profile

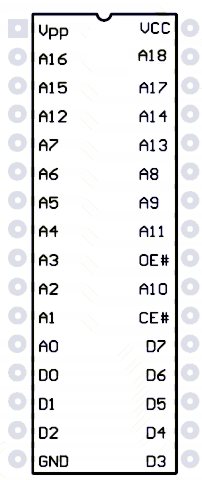

[b]Image Insert:[/b][br][br][size=1] 21.37 KB[/size=1]
Go to Top of Page
