 Posted - 03/09/2013 : 15:29:19
|
Ive been taking my luck at TSOP chips for some time now, and have yet to make one that works properly. They do everything fine except verify, and when I dump the data and try to open it, its partially full of Errors, just enough that the image is no good and I cant use it.
Im using a custom adapter just like the one HERE www.mmmonkey.co.uk/programming-29f032-eeprom-on-gq-4x/
and he is having no issues at all. I know my solder connections are good, no short circuits, and everything between the 3 boards I have is identical, and yet they fail to verify even after burning at the slowest speed, and they freeze up at 12% on full speed, I can only get it to burn on -2 -1 or 0, same results.
3 boards with 3 different 29F032's all having the same exact problem on 2 different computers is NOT a coincidence, every single one fails, no matter what BIN Im programming to it, at Adress 0X00022A, Device 0X02, Buffer 0X4F |
Edited by - Jarnutt on 03/09/2013 15:51:27
|
|
| Reply #1
Bad_Ad84
210 Posts |
Posted - 03/09/2013 : 15:47:34
|
| Rule of thumb for programming chips - if you have issues, add a 100nf cap between ground and vcc. |
 |
|
| Reply #2
Jarnutt
USA
13 Posts |
Posted - 03/09/2013 : 15:54:32
|
| that was going to be my next step, however, I was also concerned with the underlying problem Im having in general with the programmer. My other post describes it a little better, but this programmer doesnt seem to like to stay working unless you unplug it often. |
|
|
| Reply #3
Necrosaro420
109 Posts |
Posted - 03/09/2013 : 23:48:36
|
quote:
Originally posted by Bad_Ad84
Rule of thumb for programming chips - if you have issues, add a 100nf cap between ground and vcc.
Do you have a pic or anything of where to do this? |
|
|
| Reply #4
Jarnutt
USA
13 Posts |
Posted - 03/10/2013 : 14:06:15
|
Im using the type III dip36 adapter boards from BuyIC, so unless youre using those its no gelp to you to show where I would have to jumper it
|
|
|
| Reply #5
Jarnutt
USA
13 Posts |
Posted - 03/12/2013 : 17:26:36
|
| I put a .1uf cap between Pins 10 and 31 (both VPP are tied together) and 30 and 29 (both VSS are tied together) and it still fails verify at the exact same address |
|
|
| Reply #6
Jarnutt
USA
13 Posts |
Posted - 03/12/2013 : 17:32:24
|
| Or should I put it on the Programmer main board itself? Ive never ran into this before so Im a bit ignorant as to where I should be putting the cap. |
|
|
| Reply #7
ZLM
2945 Posts |
Posted - 03/12/2013 : 19:16:45
|
| Jarnutt: your adapter is not verified on GQ-4X. But you can try to parallel a 2K resistor between VCC and GND. This works on some other chips. |
|
|
| Reply #8
Jarnutt
USA
13 Posts |
Posted - 03/12/2013 : 19:22:39
|
| I know its not a verified board but they made it specifically for these programmers and so far mine isnt working out, I know all my connections are good. Ill try the resistor next, the .1uf capacitor didnt change anything even when plugged directly on the 5 pin header on the main board |
|
|
| Reply #9
Jarnutt
USA
13 Posts |
Posted - 03/12/2013 : 20:22:16
|
| What could be causing the same error on the same address on all 6 chips? Its not the file, Ive tried multiple files all with the same error |
|
|
| Reply #10
Bad_Ad84
210 Posts |
Posted - 03/12/2013 : 23:44:44
|
| Bad address line connections. |
|
|
| Reply #11
Bad_Ad84
210 Posts |
Posted - 03/12/2013 : 23:46:58
|
| Also, just to point out - random ceramic 0.1uf caps didnt help me either, I had to use a Z5U rated one, like: cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=330851225990&ssPageName=ADME:L:OC:GB:3160 |
|
|
| Reply #12
Jarnutt
USA
13 Posts |
Posted - 03/13/2013 : 14:40:54
|
Ill give a Z5U a go and see if it helps
|
|
|
| Reply #13
Jarnutt
USA
13 Posts |
Posted - 03/15/2013 : 17:42:21
|
| So update. Like an idiot I added the ceramic resister and never tried it on v5.03 software. Its now programs and verifies with no problem using the OLDER software. So obviously theres still bugs in the newer software when it comes to 29f032 chips, much like everyone else on here has been saying. |
|
|
| Reply #14
Bad_Ad84
210 Posts |
Posted - 03/16/2013 : 13:20:44
|
At least your findings are helpful - now its known there is a software issue and that it was recently introduced.
Good work :) |
|
|
| Reply #15
klingonmonk
USA
7 Posts |
Posted - 08/05/2013 : 13:45:13
|
I have built the same thing. I am not able to get mine to work either?
I have been racking my brain for 2 weeks trying to figure it out.
If you were able to get it working, would you be able to share how?
Thanks for your time,
Jeremy |
It's all about the games!
(www.rapidfiregaming.net)
Video game system and electronics repair. |
|
|
| Reply #16
Jarnutt
USA
13 Posts |
Posted - 08/05/2013 : 18:46:10
|
what exactly isnt working?
|
|
|
| Reply #17
klingonmonk
USA
7 Posts |
Posted - 08/05/2013 : 20:09:51
|
quote:
Originally posted by Jarnutt
what exactly isnt working?
I had the boards made and wired it exactly as the diagram provided showed.
I have the 40 pin ZIF and the type III board bridged with a m29f032d mounted.
I can ID the chip (When I am in a different mode... Let's say (m27c801) it will ID as the chip (m29f032). When I go to the device and set it to the chipset that it ID's as, it does not find it thus, not letting me do anything with it.
I am reading something about capacitors and resistors in the mix and I am confused about where they are supposed to go (if in fact it repairs the issue)?
I am just not sure what I am doing wrong. I have been doing NES repro's for quite sometime now and I have been able to do dual m27c801's on NBA Live carts, but I have been unable to get these working...

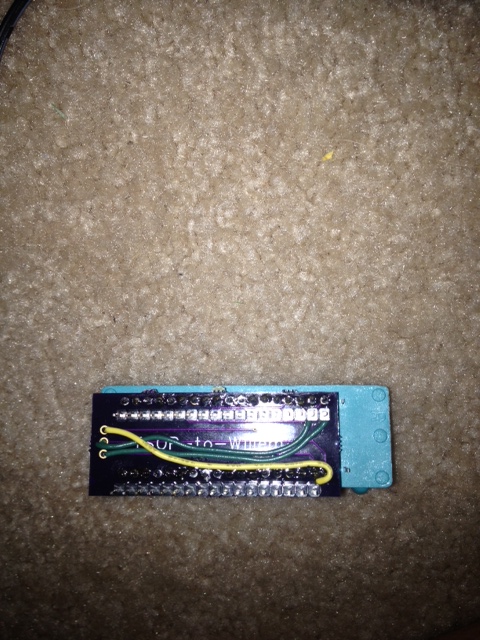

I am attaching a photo of my adapter.
(if you are not able to see the photo, I can email it to you directly). I did a preview and it is showing a broken image link.
Anyway, Oh. I am in the U.S. BTW. My first concerns were that this was designed around PAL and not NTSC but then I am reading that the hardware is primarily the same?
Thank you for your response.
Jeremy
Image Insert:
182.94 KB |
It's all about the games!
(www.rapidfiregaming.net)
Video game system and electronics repair. |
|
|
| Reply #18
klingonmonk
USA
7 Posts |
Posted - 08/07/2013 : 11:08:06
|
quote:
Originally posted by Jarnutt
what exactly isnt working?
Also, I just purchased the full kit (adp-033 familly)
Can I just write to the 29f032x chip and put it on the typeIII board and install?
I have been reading about others doing that and it working?
Thanks again,
Jeremy |
It's all about the games!
(www.rapidfiregaming.net)
Video game system and electronics repair. |
|
|
| Reply #19
Bad_Ad84
210 Posts |
Posted - 08/07/2013 : 22:39:29
|
| yes, you can do that |
|
|
| Reply #20
klingonmonk
USA
7 Posts |
Posted - 08/08/2013 : 09:33:18
|
quote:
Originally posted by Bad_Ad84
yes, you can do that
Cool!
Thanks, I was hoping that would be the case.
|
It's all about the games!
(www.rapidfiregaming.net)
Video game system and electronics repair. |
|
|
| |
Topic |
|
M29F032D read/write and ID fine but fail verify
