Software download link

The download link include:
-MPLAB Software from Microchip

-PICkit 3 User's Guide

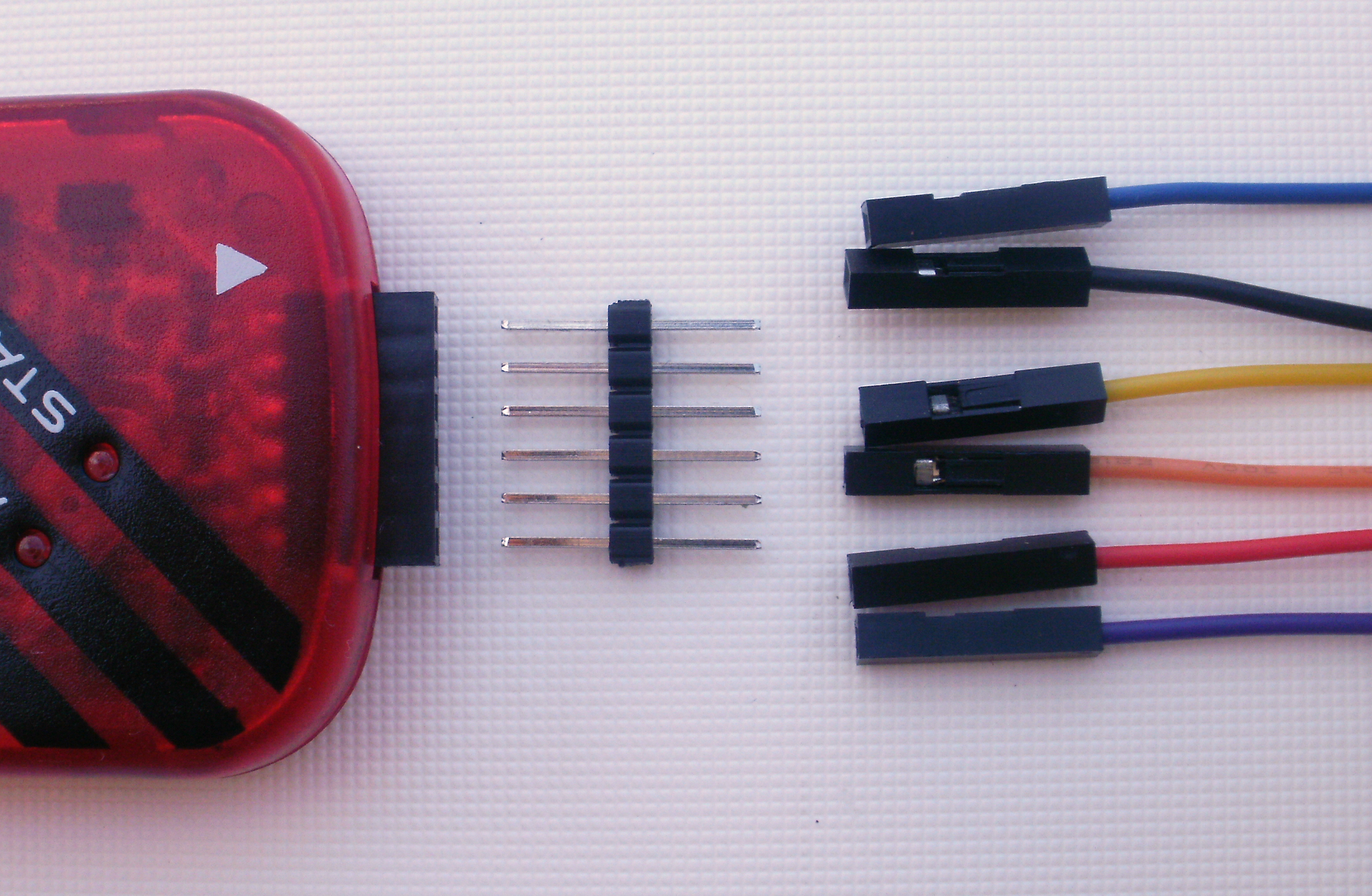

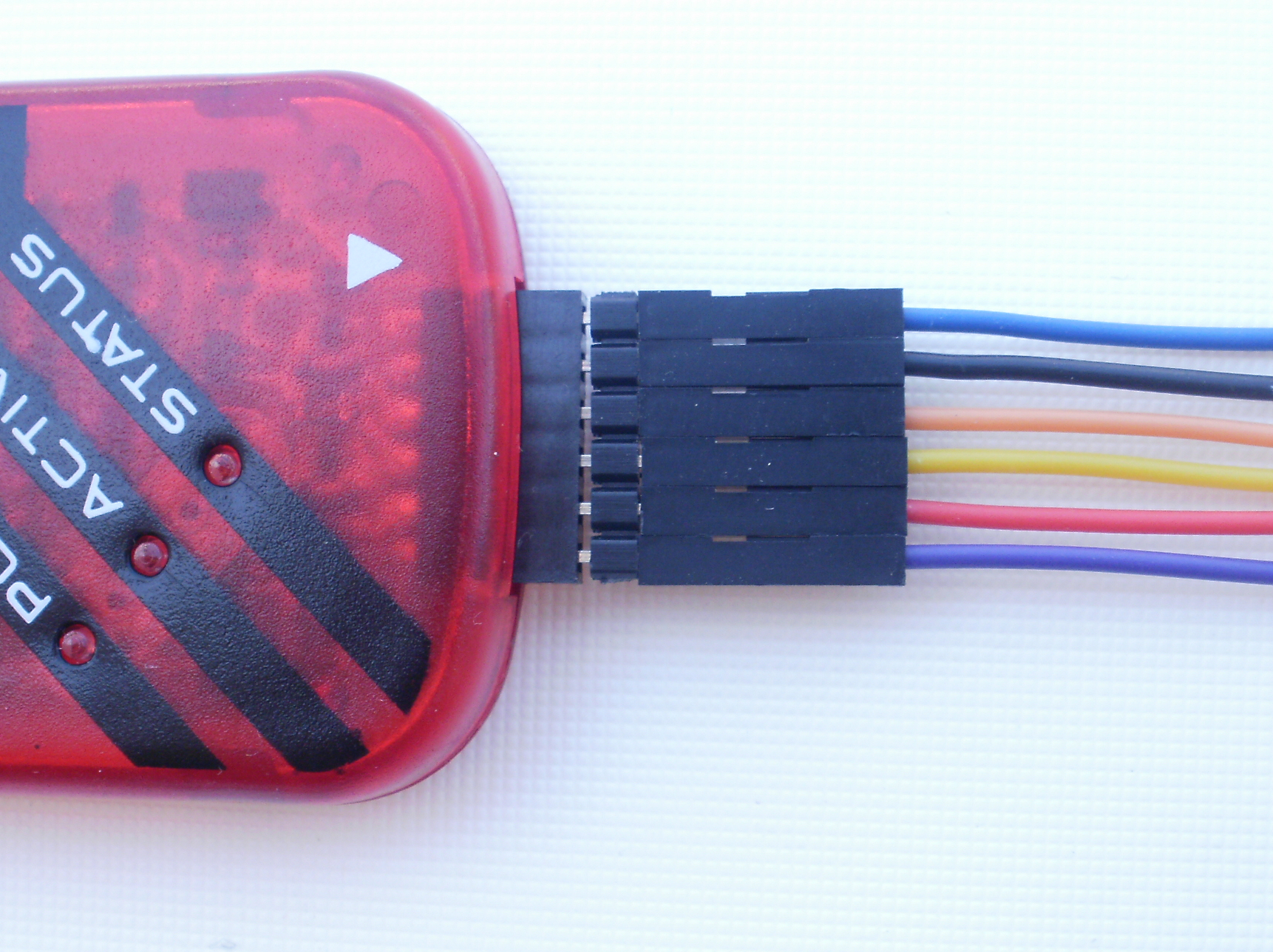

How to use jumper wires to connect the ICSP port to ZIF?



PICKit3 ICSP Port Pinout:


>












Different PIC chip has differrent pinout.



So, always read the chip datasheet and find out the chip pinout.

Connect the ICSP port to corresponding chip pins based the datasheet.



Here are the some examples for regular chip connection:





=======================================================

ALL CHIPS ARE PLACED AT THE TOP OF ZIF SOCKET, PIN 1 UP.

=======================================================

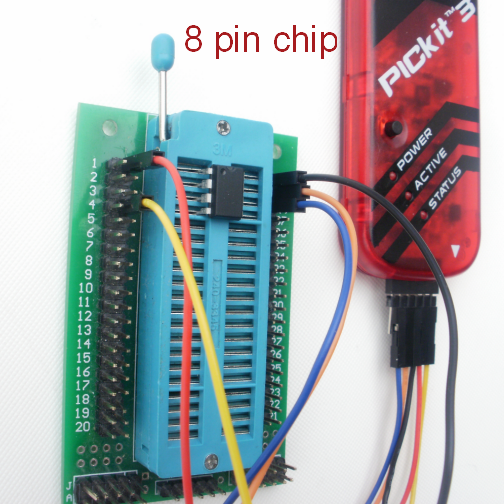

8,14,20 pin DIP PIC chips

=========================



Pin#(ZIF)-- ICSP

   1--VDD

   4--VPP

  40--GND

  38--PGC

  39--PGD





PIC 16F/18FXX 18 pin DIP PIC chips

=========================



Pin#(ZIF)-- ICSP

  36--VDD

   4--VPP

   5--GND

  34--PGC

  35--PGD

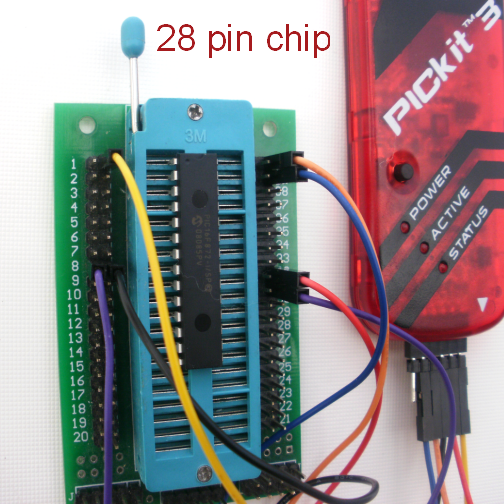

PIC 16F/18FXX 28 pin DIP PIC chips

=========================



Pin#(ZIF)-- ICSP

   1--VPP

  32--VDD

   8--GND

  31--GND

  39--PGC

  40--PGD

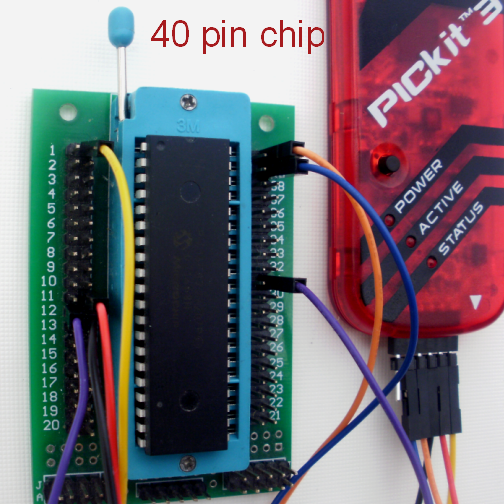

PIC 16F/18FXX 40 pin DIP PIC chips

=========================



Pin#(ZIF)-- ICSP

   1--VPP

  11--VDD

  12--GND

  31--GND

  32--VDD

  39--PGC

  40--PGD






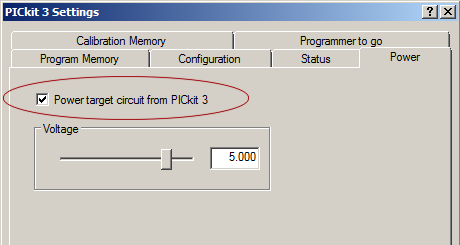

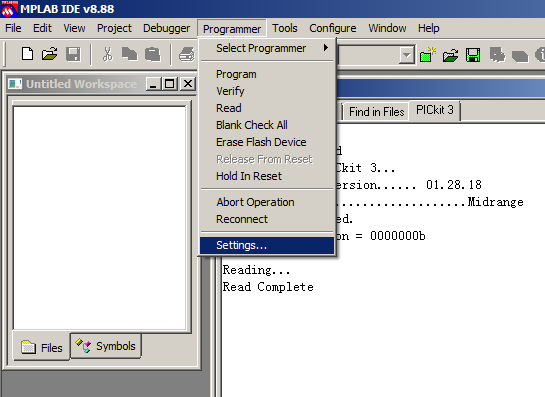

Programming Setup Examples:





+++++++++++++++++++++++++++++++++++++++++++

+  ALL OTHERS SEE DATASHEET PINOUT        +

+++++++++++++++++++++++++++++++++++++++++++





===========================================

PIC KIT3 in MPLAB 8.56 Supported Devices:

Latest devices list see latest version MPLAB software

===========================================



MCV series:

MCV18E, MCV20USB
dsPIC30F series:

dsPIC30F2011,dsPIC30F2012,dsPIC30F1010,dsPIC30F2020,dsPIC30F2023,dsPIC30F3010,dsPIC30F3011,dsPIC30F3012,
dsPIC30F3013,dsPIC30F3014,dsPIC30F4011,
dsPIC30F4012,dsPIC30F4013,dsPIC30F5011,dsPIC30F5013,dsPIC30F5015,dsPIC30F5016,
dsPIC30F6010,dsPIC30F6010A,dsPIC30F6011,dsPIC30F6011A,dsPIC30F6012,dsPIC30F6012A,dsPIC30F6013,dsPIC30F6013A,
dsPIC30F6014,dsPIC30F6014A,dsPIC30F6015
PIC10F series:

PIC10F200,PIC10F202,PIC10F204,PIC10F206,PIC10F220,PIC10F222
PIC12F series:

PIC12F508,PIC12F509,PIC12F510,PIC12F519,PIC16F526,PIC12F629,PIC12F635,PIC12F675,PIC12F683,PIC12F615,PIC12F617,
PIC12HV615,PIC12F1822,PIC12LF1822,PIC12F609,PIC12HV609
PIC16F,PIC16LF series:

PIC16F505,PIC16F506,PIC16F54,PIC16F57,PIC16F59,PIC16F627,PIC16F627A,PIC16F628,PIC16F628A,
PIC16F630,PIC16F636,PIC16F639,PIC16F648A,PIC16F676,PIC16F631,
PIC16F677,PIC16F684,PIC16F685,PIC16F687,PIC16F688,PIC16F689,
PIC16F690,PIC16F716,PIC16F72,PIC16F73,PIC16F74,PIC16F76,
PIC16F77,PIC16F818,PIC16F819,PIC16F83,PIC16F721*,PIC16F722,
PIC16F722A,PIC16F723,PIC16F723A*,PIC16F724,PIC16F726,
PIC16F727,PIC16F707,PIC16LF722,PIC16LF722A,PIC16LF723,
PIC16LF723A,PIC16LF724,PIC16LF726,PIC16LF707,PIC16LF727,
PIC16F737,PIC16F747,PIC16F767,PIC16F777,PIC16F785,PIC16HV785,
PIC16F84,PIC16F84A,PIC16F87,PIC16F870,PIC16F871,PIC16F872,
PIC16F873,PIC16F873A,PIC16F874,PIC16F874A,PIC16F876,
PIC16F876A,PIC16F877,PIC16F877A,PIC16F88,PIC16F882,PIC16F883,
PIC16F884,PIC16F886,PIC16F887,PIC16F913,PIC16F914,
PIC16F916,PIC16F917,PIC16F946,PIC16F610,PIC16HV610,PIC16F616,
PIC16HV616,PIC16F1823,PIC16LF1823,PIC16F1824*,
PIC16LF1824*,PIC16F1826,PIC16LF1826,PIC16F1827,PIC16LF1827,
PIC16F1828*,PIC16LF1828*,PIC16F1829*,PIC16LF1829*,PIC16F1933,
PIC16LF1933,PIC16F1934,PIC16LF1934,PIC16F1936,PIC16LF1936,
PIC16F1937,PIC16LF1937,PIC16F1938,PIC16LF1938,
PIC16F1939,PIC16LF1939,PIC16F1946,PIC16LF1946,PIC16F1947,
PIC16LF1947
PIC18F series:

PIC18F1220,PIC18F1320,PIC18F1330,PIC18F1230,PIC18F13K22,PIC18F14K22,PIC18LF13K22,PIC18LF14K22,
PIC18F13K50,PIC18F14K50,PIC18LF13K50,PIC18LF14K50,PIC18F2220,PIC18F2221,PIC18F2320,PIC18F23K20,PIC18F2321,PIC18F2331,
PIC18F2410,PIC18F2450,PIC18F242,PIC18F2420,PIC18F24K20,PIC18F2423,PIC18F2431,PIC18F2455,PIC18F2458,PIC18F248,PIC18F2480,
PIC18F24J10,PIC18LF24J10,PIC18F2510,PIC18F2515,PIC18F2520,
PIC18F25K20,PIC18F46K22,PIC18LF46K22*,PIC18F26K22,PIC18LF26K22*,PIC18F44K22*,PIC18LF44K22*,PIC18F43K22*,
PIC18LF43K22*,PIC18F24K22*,PIC18LF24K22,PIC18F23K22*,PIC18LF23K22*,PIC18F25K22,PIC18LF25K22,
PIC18F2523,PIC18F2525,PIC18F252,PIC18F2550,PIC18F2553,PIC18F258,PIC18F2580,PIC18F2585,
PIC18F25J10,PIC18LF25J10,PIC18F2610,PIC18F2620,PIC18F26K20,PIC18F2680,PIC18F2682,PIC18F2685,PIC18F4220,PIC18F4221,
PIC18F43K20,PIC18F4331,PIC18F4320,PIC18F4321,PIC18F4410,PIC18F4450,PIC18F442,PIC18F4420,PIC18F44K20,PIC18F4423,
PIC18F4431,PIC18F4455,PIC18F4458,PIC18F448,PIC18F4480,PIC18F44J10,PIC18LF44J10,PIC18F4510,PIC18F45J10,PIC18LF45J10,
PIC18F4515,PIC18F4520,PIC18F45K20,PIC18F45K22,PIC18LF45K22,PIC18F4523,PIC18F452,PIC18F4525,PIC18F4550,PIC18F4553,PIC18F458,
PIC18F4580,PIC18F4585,PIC18F4610,PIC18F4620,PIC18F46K20,
PIC18F4680,PIC18F4682,PIC18F4685,PIC18F6310,PIC18F6390,PIC18F6393,PIC18F6410,PIC18F6490,PIC18F6493,PIC18F6520,PIC18F6527,
PIC18F6525,PIC18F6585,PIC18F65J10,PIC18F65J15,PIC18F65J50,PIC18F6620,PIC18F6621,PIC18F6622,PIC18F6627,PIC18F6628,PIC18F6680,
PIC18F66J10,PIC18F66J11,PIC18F66J15,PIC18F66J16,
PIC18F66J50,PIC18F66J55,PIC18F66J65,PIC18F67J10,PIC18F67J11,PIC18F66J60,PIC18F67J50,PIC18F67J60,PIC18F6720,PIC18F6722,
PIC18F6723,PIC18F8310,PIC18F8390,PIC18F8393,PIC18F8410,PIC18F8490,PIC18F8493,PIC18F8520,PIC18F8525,PIC18F8527,PIC18F8585,
PIC18F85J10,PIC18F85J15,PIC18F85J50,PIC18F8620,PIC18F8621,
PIC18F8622,PIC18F8627,PIC18F8628,PIC18F8680,PIC18F86J10,PIC18F86J11,PIC18F86J15,PIC18F86J16,PIC18F86J50,PIC18F86J55,
PIC18F86J60,PIC18F86J65,PIC18F8720,PIC18F8722,PIC18F8723,
PIC18F87J10,PIC18F87J11,PIC18F67K90,PIC18F66K80*,
PIC18F46K80*,PIC18F26K80*,PIC18F65K80*,PIC18F45K80*,PIC18F25K80*,PIC18LF25K80*,PIC18LF26K80*,PIC18LF45K80*,PIC18LF46K80*,
PIC18LF65K80*,PIC18LF66K80*,PIC18F66K90,PIC18F65K90,PIC18F86K90,PIC18F85K90,PIC18F67K22,PIC18F65K22,PIC18F66K22,PIC18F87K22,
PIC18F86K22,PIC18F85K22,PIC18F87J50,PIC18F87J60,
PIC18F87K90,PIC18F96J65,PIC18F96J60,PIC18F97J60,PIC18F63J90,PIC18F64J90,PIC18F65J90,PIC18F63J11,PIC18F64J11,PIC18F65J11,PIC18F83J11,
PIC18F84J11,PIC18F85J11,PIC18F83J90,PIC18F84J90,
PIC18F85J90,PIC18F66J90,PIC18F67J90,PIC18F86J90,PIC18F87J90,PIC18F66J93,PIC18F67J93,PIC18F86J93,PIC18F87J93,PIC18F86J72,
PIC18F87J72,PIC18F46J50,PIC18F46J11,PIC18F26J50,PIC18F26J11,PIC18F45J50,PIC18F44J50,PIC18F25J50,PIC18F24J50,
PIC18F45J11,PIC18F44J11,PIC18F25J11,PIC18F24J11,PIC18LF46J50,PIC18LF46J11,PIC18LF26J50,PIC18LF26J11,PIC18LF45J50,
PIC18LF44J50,PIC18LF25J50,PIC18LF24J50,PIC18LF45J11,PIC18LF44J11,PIC18LF25J11,PIC18LF24J11,PIC18F47J53,PIC18F46J53,
PIC18F27J53,PIC18F26J53,PIC18F47J13,PIC18F46J13,PIC18F27J13,PIC18F26J13,PIC18LF47J53,PIC18LF46J53,PIC18LF27J53,PIC18LF26J53,
PIC18LF47J13,PIC18LF46J13,PIC18LF27J13,PIC18LF26J13
PIC24F series:

PIC24F16KA102,PIC24F16KA101,PIC24F08KA102,PIC24F08KA101,PIC24F04KA201,PIC24F04KA200,PIC24FJ128DA106,
PIC24FJ256DA106,PIC24FJ128DA110,PIC24FJ256DA110,
PIC24FJ128DA206,PIC24FJ256DA206,PIC24FJ128DA210,PIC24FJ256DA210,
PIC24FJ256GB110,PIC24FJ256GB108,PIC24FJ256GB106,
PIC24FJ192GB110,PIC24FJ192GB108,PIC24FJ192GB106,PIC24FJ128GB110,
PIC24FJ128GB108,PIC24FJ128GB106,PIC24FJ64GB110,PIC24FJ64GB108,PIC24FJ64GB106,PIC24FJ128GB206,PIC24FJ256GB206,
PIC24FJ128GB210,PIC24FJ256GB210,PIC24FJ256GA110,PIC24FJ256GA108,
PIC24FJ256GA106,PIC24FJ192GA110,PIC24FJ192GA108,
PIC24FJ192GA106,PIC24FJ128GA110,PIC24FJ128GA108,PIC24FJ128GA106,
PIC24FJ64GA006,PIC24FJ64GA008,PIC24FJ64GA010,
PIC24FJ96GA006,PIC24FJ96GA008,PIC24FJ96GA010,PIC24FJ128GA006,PIC24FJ128GA008,PIC24FJ128GA010,PIC24HJ32GP204,PIC24HJ32GP202,
PIC24HJ16GP304,PIC24HJ12GP202,PIC24HJ12GP201,PIC24FJ16GA002,
PIC24FJ16GA004,PIC24FJ32GA002,PIC24FJ32GA004,
PIC24FJ48GA002,PIC24FJ48GA004,PIC24FJ64GA002,PIC24FJ64GA004,
PIC24FJ32GA102,PIC24FJ32GA104,PIC24FJ64GA102,PIC24FJ64GA104,
PIC24FJ32GB002,PIC24FJ32GB004,PIC24FJ64GB002,PIC24FJ64GB004
dsPIC33F series:

dsPIC33FJ64GP206,dsPIC33FJ64GP206A,dsPIC33FJ64GP306,dsPIC33FJ64GP306A,dsPIC33FJ64GP310,
dsPIC33FJ64GP310A,dsPIC33FJ64GP706,dsPIC33FJ64GP706A,dsPIC33FJ64GP708,
dsPIC33FJ64GP708A,dsPIC33FJ64GP710,dsPIC33FJ64GP710A,dsPIC33FJ128GP206,dsPIC33FJ128GP206A,dsPIC33FJ128GP306,
dsPIC33FJ128GP306A,dsPIC33FJ128GP310,dsPIC33FJ128GP310A,dsPIC33FJ128GP706,dsPIC33FJ128GP706A,dsPIC33FJ128GP708,
dsPIC33FJ128GP708A,dsPIC33FJ128GP710,dsPIC33FJ128GP710A,dsPIC33FJ256GP506,
dsPIC33FJ256GP506A,dsPIC33FJ256GP510,dsPIC33FJ256GP510A,dsPIC33FJ256GP710,dsPIC33FJ256GP710A,dsPIC33FJ64MC506,
dsPIC33FJ64MC506A,dsPIC33FJ64MC508,dsPIC33FJ64MC508A,dsPIC33FJ64MC510,dsPIC33FJ64MC510A,dsPIC33FJ64MC706,
dsPIC33FJ64MC706A,dsPIC33FJ64MC710,dsPIC33FJ64MC710A,
dsPIC33FJ128MC506A,dsPIC33FJ128MC506,dsPIC33FJ128MC510,dsPIC33FJ128MC510A,
dsPIC33FJ128MC706,dsPIC33FJ128MC706A,dsPIC33FJ128MC708,dsPIC33FJ128MC708A,dsPIC33FJ128MC710,dsPIC33FJ128MC710A,
dsPIC33FJ256MC510,dsPIC33FJ256MC510A,dsPIC33FJ256MC710,dsPIC33FJ256MC710A,dsPIC33FJ32GP204,dsPIC33FJ32GP202,
dsPIC33FJ32MC204,dsPIC33FJ32MC202,dsPIC33FJ16GP304,dsPIC33FJ16MC304,dsPIC33FJ128GP804,dsPIC33FJ128GP802,dsPIC33FJ128GP204,
dsPIC33FJ128GP202,dsPIC33FJ64GP804,dsPIC33FJ64GP802,
dsPIC33FJ64GP204,dsPIC33FJ64GP202,dsPIC33FJ32GP304,dsPIC33FJ32GP302,
dsPIC33FJ128MC804,dsPIC33FJ128MC802,dsPIC33FJ128MC204,
dsPIC33FJ128MC202,dsPIC33FJ64MC804,dsPIC33FJ64MC802,
dsPIC33FJ64MC204,dsPIC33FJ64MC202,dsPIC33FJ32MC304,
dsPIC33FJ32MC302,dsPIC33FJ12GP202,dsPIC33FJ12GP201,dsPIC33FJ12MC202,
dsPIC33FJ12MC201,dsPIC33FJ06GS101,dsPIC33FJ06GS102,
dsPIC33FJ06GS202,dsPIC33FJ16GS402,dsPIC33FJ16GS404,dsPIC33FJ16GS502,dsPIC33FJ16GS504,dsPIC33FJ32GS406,
dsPIC33FJ64GS406,dsPIC33FJ32GS606,dsPIC33FJ64GS606,dsPIC33FJ32GS608,
dsPIC33FJ64GS608,dsPIC33FJ32GS610,dsPIC33FJ64GS610
PIC24HJ series:

PIC24HJ64GP206,PIC24HJ64GP206A,
PIC24HJ64GP210,PIC24HJ64GP210A,PIC24HJ256GP206,PIC24HJ256GP206A,
PIC24HJ256GP610,PIC24HJ256GP610A,PIC24HJ64GP506,
PIC24HJ64GP506A,PIC24HJ64GP510,PIC24HJ64GP510A,PIC24HJ128GP206,
PIC24HJ128GP206A,PIC24HJ128GP210,PIC24HJ128GP210A,
PIC24HJ128GP306,PIC24HJ128GP306A,PIC24HJ128GP310,PIC24HJ128GP310A,
PIC24HJ128GP506,PIC24HJ128GP506A,PIC24HJ128GP510,
PIC24HJ128GP510A,PIC24HJ256GP210,PIC24HJ256GP210A,PIC24HJ128GP504,PIC24HJ128GP502,PIC24HJ128GP204,PIC24HJ128GP202,
PIC24HJ64GP504,PIC24HJ64GP502,PIC24HJ64GP204,PIC24HJ64GP202,
PIC24HJ32GP304,PIC24HJ32GP302
PIC32M series:

PIC32MX320F032H,PIC32MX320F064H,
PIC32MX320F128H,PIC32MX340F128H,PIC32MX340F128L,PIC32MX340F256H,PIC32MX340F512H,PIC32MX320F128L,PIC32MX360F256L,
PIC32MX360F512L,PIC32MX420F032H,PIC32MX440F128H,PIC32MX440F256H,
PIC32MX440F512H,PIC32MX440F128L,PIC32MX460F256L,PIC32MX460F512L,PIC32MX534F064L*,PIC32MX534F064H*,PIC32MX564F064L*,
PIC32MX564F064H*,PIC32MX564F128L*,PIC32MX564F128H*,
PIC32MX575F256L,PIC32MX575F256H,PIC32MX575F512L,PIC32MX575F512H,PIC32MX664F064L*,PIC32MX664F064H*,PIC32MX664F128L*,
PIC32MX664F128H*,PIC32MX675F256L,PIC32MX675F256H,PIC32MX675F512L,
PIC32MX675F512H,PIC32MX695F512L,PIC32MX695F512H,
PIC32MX764F128L*,PIC32MX764F128H*,PIC32MX775F256L,PIC32MX775F256H,
PIC32MX775F512L,PIC32MX775F512H,PIC32MX795F512L,
PIC32MX795F512H
