 About Willem Programmer
Willem programmer is the most popular low cost universal programmer.
There are quite a number of versions in the markets but only two types willem programmer: True USB willem and Parrellel Willem.
* True USB willem uses USB cable to connect computer USB port for Data transfer/Data transmission
* Parrellel willem uses DB25 Data cable/printer extension cable to connect computer LPT port (printer port) for Data transmission.
Is USB powered willem the same as True USB willem Programmer?
No. USB powered willem is NOT the same as True USB willem programmer. USB powered willem is still a Parrellel willem programmer type because it still needs a DB25 data cable for data transmission. It use USB port for power supply only. But True-USB willem use one USB cable for power supply as well as data transmission.
Why do I need a True USB Willem programmer?
Ask youself the following questions, if yes, please buy-it-now.
*Do I need a cost-for-performance programmer?
*Do I need a fully automatic programmer?
*Do I need free software upgrade after purchase?
*Do I need use the programmer on laptop/notebook computer for on-spot/field application?
*Do I need hight speed for my application such that I will not to wait for ages for reading/writing a chip ?
*Do I need small scale production?
*Do I need faster support programmer?
*Do I need to use it with Windows Vista (32bit and 64 bit)?
How do I know a Willem programmer is a USB Willem or parrelell Willem/LPT Willem?
The rule to determine a willem programmer is a USB interface or parrellel interface is that if the willem programmer requres a DB25 Data cable and if the set up requires your PC/Laptop must have a printer port for data transfer.
All existing Willem programmers are parrellel Willem programmers except MCUmall GQ-2X, GQ-3X and GQ-4X

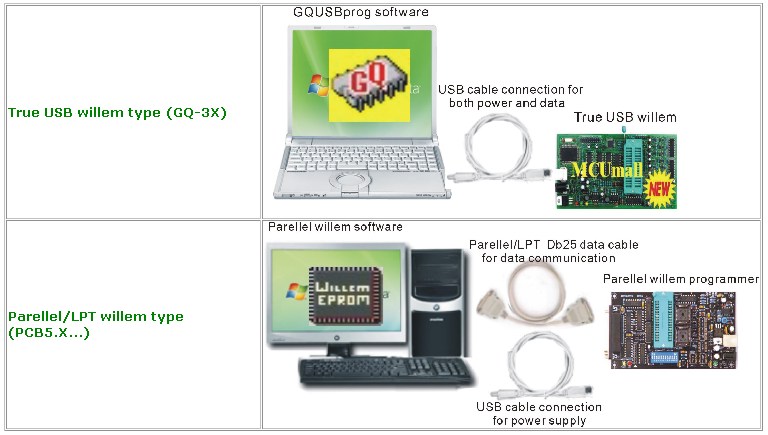

Willem Programmer-to-Computer connection diagram
The LPT Willems/Parrellel willem version includes: PCB5.xx, PCB 4.5x, PCB3B, Willem programmer Pro, dual powered willem,enhanced willem, AC DC USB power willem, enhanced dual power and etc .
Comparing to LPT Willems/Parrellel Willems , the USB Willem version:
* Extend the applications that LPT willem programmers are not able to be used
- Use with new laptop that has only USB port
- On-spot, field applications, like on-spot chip tuning, portable
- The applications use high density flashs, like satellite application
- Convenient and small scale production.
*Significantly improve the performance of LPT willem towards professional level
Most stable
Most portable
Ultra high speed (up to 20x faster than all existing LPT Willems)
Best software quality
Supports more chips
Support chips that LPT Willem are not capable of supporting
Protect the chip from damage
* Elevate Willem-brand image from cheap hobby level towards cost-for-performance professional tool
Keep Willem-brand abreast of the PC/laptop technology evolution
Design the software by professional software developer from CA
Life-time free software upgrade
Device algoriithm update regularily
Support TSOP48, PSOP44, 16 bit chips that TOP,EasyPro 40pin are
not capable of supporting
Competative & much better software performance than brand, like TOP
Establish post-sale support community (MCUmall Techical Forum) [/list]
*Improve software design quality
- Easy to use
- User-friendly interface
- Multi-tasking: user is able to do other job when the USB Willem programmer running. the LPT Willems 100% occupy CPU while reading & writing
- Allow user add new devices to the device support list
[/*][/list]
|
