 Am29LV081B with GQ-4X		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

sylverster16v

Germany
69 Posts
Posted - 07/15/2009 :  05:51:29  Show Profile  Reply with Quote
hi ,
i need the device line for Am29LV081B Tsop40.
Datasheet: h**p://www.amd.com/us-en/scriptets/content_type/white_papers_and_tech_docs/21525.pdf

may be this helps?
h**p://www.ezoflash.com/chip_database.php?trimmed=&c=1&s=170&showchips=178&filter_brand=0&filter_group1=0&filter_package=0&filter_size=0&filter_config=0&filter_vcc=0&filter_adapter=0
Edited by - sylverster16v on 07/15/2009 05:55:29
Reply #1

sylverster16v

Germany
69 Posts
Posted - 07/16/2009 :  06:44:03  Show Profile  Reply with Quote

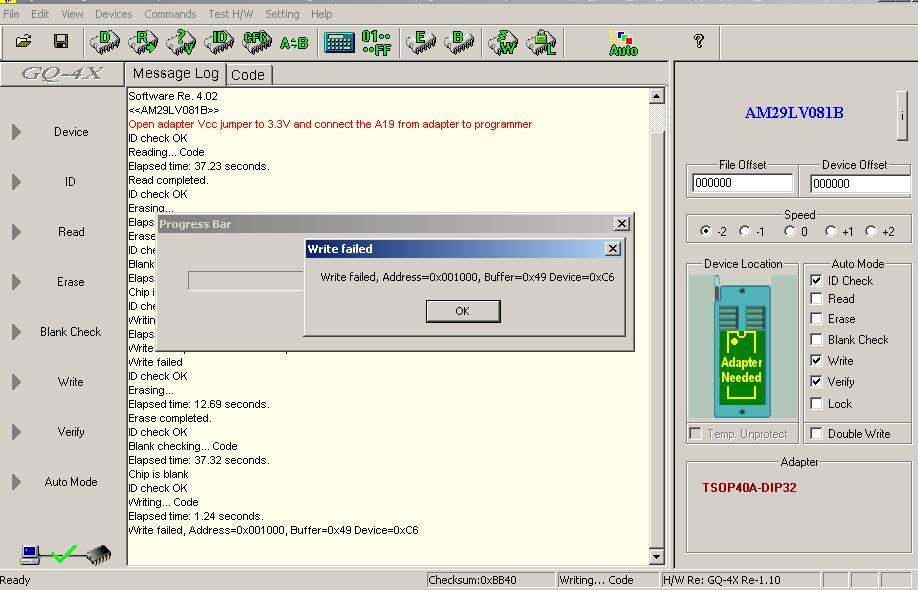

with this line, i get correct id and can read,erase and blankcheck is ok , but write fails with every speed! A19 is connected!
i think it needs temp unprotect?

Name="AM29LV081B*TSOP40",ID="0138",Class="SST39LF/VF040",Category="FLASH",MFG="AMD",CodeSize="1048576",DIP="100011110101",Adapter="TSOP40A-DIP32",VCC="5V",Message="Open adapter Vcc jumper to 3.3V and connect the A19 from adapter to programmer";

Image Insert:

88.16 KB
Edited by - sylverster16v on 07/16/2009 07:38:16
Go to Top of Page
Reply #2

ZLM

2945 Posts
Posted - 07/16/2009 :  21:44:33  Show Profile  Reply with Quote
It seems A12 address line is not contact well. Check your chip pin contact.

The chip should work with this settings.
Go to Top of Page
Reply #3

sylverster16v

Germany
69 Posts
Posted - 07/18/2009 :  16:00:59  Show Profile  Reply with Quote
i checked and cleaned all pins,but same error!
if i change speed,the error changes to,see picture:

Image Insert:

91.06 KB
Go to Top of Page
Reply #4

sylverster16v

Germany
69 Posts
Posted - 07/19/2009 :  13:05:38  Show Profile  Reply with Quote
with this line it works fine now:

Name="AM29LV081B",ID="0138",Class="SST39LF/VF040",Category="FLASH",MFG="AMD",CodeSize="1048576",DIP="100011110101",Adapter="TSOP40A-DIP32 adapter",VCC="3.6V",Speed="3",Message=" Set the adapter to 5V jumper position and connect A19 from adapter to programmer.";
Edited by - sylverster16v on 07/19/2009 13:06:45
Go to Top of Page
Reply #5

ZLM

2945 Posts
Posted - 07/19/2009 :  21:41:00  Show Profile  Reply with Quote
Thank you very much for your update. This device will be in the next software release.
