 FWH/LPC+ upgrade DIY		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

flashcoder

Latvia
6 Posts
Posted - 12/01/2010 :  18:33:57  Show Profile  Reply with Quote
Normal FWH/LPC+ adapter ADP-030 is missing DIP sockets and some other components for TSOP adapters which are offered in Professional FWH/LPC+ adapter set ADP-057.
Now, I have this Normal version and suddenly need the TSOP capability, I can just solder in the missing parts and it will work. I could, of course, just order the ADP-057 set but I already have that TSOP adapter and besides why waste a working adapter if you can just upgrade it right? :)
But there is a problem with those two missing transistors, I dont know if they are the same as other two on this Normal FWH/LPC+ adapter, those are PNP transistors S8050
pdf1.alldatasheet.com/datasheet-pdf/view/33773/WINGS/S8050.html

Can someone confirm what transistors are used for TSOP part of the FWH/LPC+ adapter?

Thanks!
Reply #1

Bad_Ad84

210 Posts
Posted - 12/02/2010 :  02:27:32  Show Profile  Reply with Quote
I can check mine later
Go to Top of Page
Reply #2

Bad_Ad84

210 Posts
Posted - 12/03/2010 :  08:53:38  Show Profile  Reply with Quote
All 5 transistors are S8050
Go to Top of Page
Reply #3

ZLM

2945 Posts
Posted - 12/04/2010 :  20:41:00  Show Profile  Reply with Quote
Your adapter must be Re2.0 or earlier version.

But it should work fine for most of chips. You do not have to install those missing component.
Go to Top of Page
Reply #4

flashcoder

Latvia
6 Posts
Posted - 12/14/2010 :  20:40:34  Show Profile  Reply with Quote

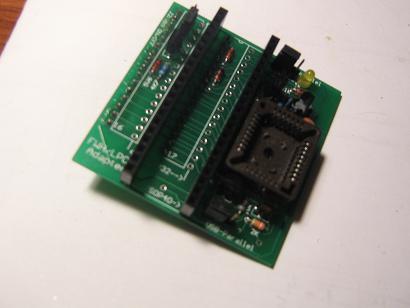

Anyway, I already upgraded it with the missing components, it was too easy to resist the DIY upgrade :)
