juanmiglesias

Venezuela
4 Posts
Posted - 10/16/2012 :  07:20:17  Show Profile  Reply with Quote
Hi i want to add support for 29L3211, already got the SOP44 to DIP44 adapter (universal eprom prog), also I own the 16 Bit EPROM 40/42 pin ZIF adapter that is need it for working with 16bit.

How can I add support for it? do i simple edit the devices.txt, can anyone help me with that? thanks.

link to adapter
www.ebay.com/itm/PSOP44-PSOP-SOP44-DIP44-Programmer-Adapter-socket-/120766350529?pt=LH_DefaultDomain_0&hash=item1c1e3c44c1" target="_blank">h p://www.ebay.com/itm/PSOP44-PSOP-SOP44-DIP44-Programmer-Adapter-socket-/120766350529?pt=LH_DefaultDomain_0&hash=item1c1e3c44c1

datasheet for 29L3211:
www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&ved=0CCYQFjAA&url=http%3A%2F%2Fwww.datasheetcatalog.org%2Fdatasheet%2Fmacronix%2FMX29L3211TC-10.pdf&ei=93p9UPX9Gojk9ASa34DgAQ&usg=AFQjCNFuN0ymN51aaeXJTAPNPVTrye2LpA" target="_blank">h p://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&ved=0CCYQFjAA&url=http%3A%2F%2Fwww.datasheetcatalog.org%2Fdatasheet%2Fmacronix%2FMX29L3211TC-10.pdf&ei=93p9UPX9Gojk9ASa34DgAQ&usg=AFQjCNFuN0ymN51aaeXJTAPNPVTrye2LpA

thanks in advance
Edited by - juanmiglesias on 10/16/2012 07:21:40
Reply #1

ZLM

2945 Posts
Posted - 12/13/2012 :  14:33:36  Show Profile  Reply with Quote

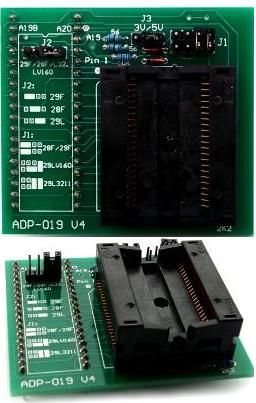

Now ADP-019 V4 is available and it supports MX29L3211 PSOP44 chips.
See:
http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=4561

The MX29L3211 is been added to software since Re6.18 release.


Image Insert:

25.27 KB
Go to Top of Page
Reply #2

topgeargames

Canada
27 Posts
Posted - 12/19/2012 :  14:55:28  Show Profile  Reply with Quote
I cant see that revision. on the site all I can see is 6.17B, which doesnt have that chip in the device list. Is there a line of code that needs to be entered?
Go to Top of Page
Reply #3

ZLM

2945 Posts
Posted - 12/19/2012 :  20:17:16  Show Profile  Reply with Quote
You need download the 6.18 version software.

Check it back later in download page. It should be there later on.
Go to Top of Page
Reply #4

juanmiglesias

Venezuela
4 Posts
Posted - 12/22/2012 :  12:23:05  Show Profile  Reply with Quote
AWESOME! thanks!, I already backorder it!
Go to Top of Page
Reply #5

topgeargames

Canada
27 Posts
Posted - 12/31/2012 :  11:43:40  Show Profile  Reply with Quote
I received my PSOP44 adapter today for these M29L3211 chips, but the software still isnt on the website so I cannot use them. When will this software be available? It doesnt make sense to release an adapter without releasing the software for it...
Go to Top of Page
Reply #6

topgeargames

Canada
27 Posts
Posted - 01/03/2013 :  10:39:21  Show Profile  Reply with Quote
ZLM? Ezosat? I want to be able to use these chips but until the software is released this adapter is a paperweight... Any updates?
Go to Top of Page
Reply #7

ZLM

2945 Posts
Posted - 01/05/2013 :  11:01:58  Show Profile  Reply with Quote
Here is the software:

http://www.mcumall.com/download/TrueUSBWillem/USBPrgSetup6.18.exe
Go to Top of Page
Reply #8

topgeargames

Canada
27 Posts
Posted - 01/05/2013 :  11:53:30  Show Profile  Reply with Quote
Awesome thank you!
Go to Top of Page
