 Posted - 07/15/2013 : 06:35:41
|
i just Buy a new ADP-033A set of Adapters for TSOP Chips.i am trying to flash it but with no luck can't get the ID for this chip.
the software says " Open adapter Vcc jumper to 3.3V and GQ-3X connect the A19 from adapter to programmer "
i have GQ-4x with following details
H/W Re: GQ-4X Re-1.42
USB Driver Re.1.0
Software Re. 6.1i think i don't need to connect the A19 From the Adapter, but there are 4 jumpers on ADP-082, from which two are for VPP not VCC one is codded with 3v/5v, is this jumper is for VCC and will have to put the jumper on 3v side?
i tried on both sides with no luck
|
Do Searching before Asking, But Asking will never kill you...... |
|
| Reply #1
ZLM
2945 Posts |
Posted - 07/15/2013 : 10:00:38
|
Make sure your top ZIF board is siting on TSOP40A base board pin headers. The VCC set to 5V.
Check all chip pin contactings. |
 |
|
| Reply #2
Naughty
India
35 Posts |
Posted - 07/17/2013 : 03:23:07
|
| THE TOP ZIF board is on TSOP40A Base Board Pin Headers & VCC Set to 5v.let me take Some Pictures and upload them here you can check it urself. |
Do Searching before Asking, But Asking will never kill you...... |
|
|
| Reply #3
Naughty
India
35 Posts |
Posted - 07/17/2013 : 04:25:10
|

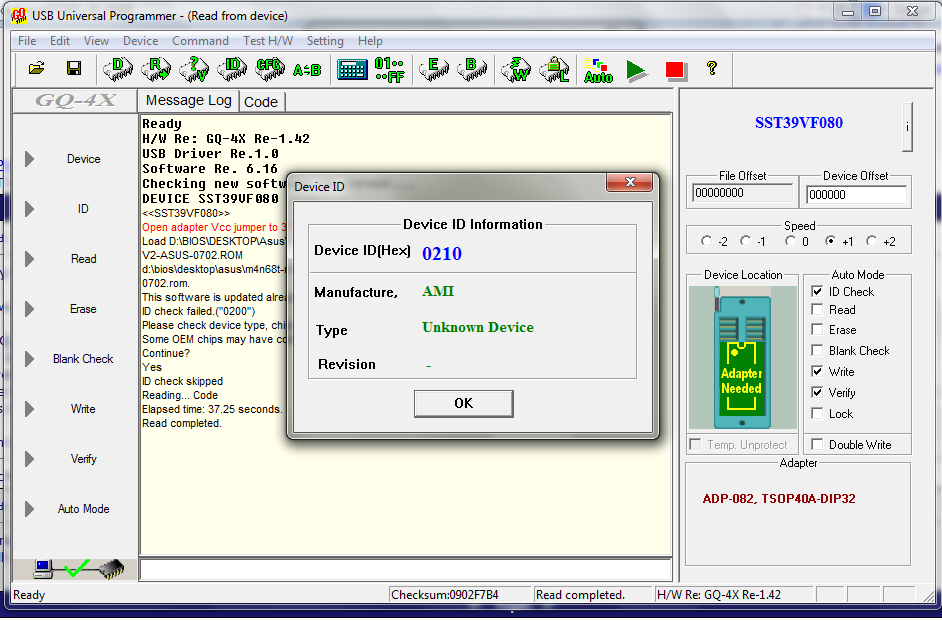

This msg i am Getting every time.
Image Insert:
112.62 KB
Can't Upload other Images because of the Size Limit.
will try to upload them Again |
Do Searching before Asking, But Asking will never kill you...... |
|
|
| Reply #4
Naughty
India
35 Posts |
Posted - 07/17/2013 : 04:43:25
|
Here is the 2nd Picture.
h**p://imageshack.us/photo/my-images/690/956i.jpg
Replace ** with tt
in this Pic you can see how i am using this adapter & Please advice if i m doing something wrong |
Do Searching before Asking, But Asking will never kill you...... |
|
|
| Reply #5
Naughty
India
35 Posts |
Posted - 07/17/2013 : 04:59:19
|
OK, i got the Prob., i have to change the J5 to V1.0 Side to use this chip with ADP-082 Adapter.
But this info is missing from the Msg shown by the Software, it only says to open the 3v Jumper.
ZLM Can you Please explain the Jumpers of this adapter like what Vpp1 & Vpp2 , J3,J4,J5 can do
So a Novice user can Understand how to use it. |
Do Searching before Asking, But Asking will never kill you...... |
Edited by - Naughty on 07/17/2013 05:01:21 |
|
|
| Reply #6
Naughty
India
35 Posts |
Posted - 07/17/2013 : 05:18:33
|

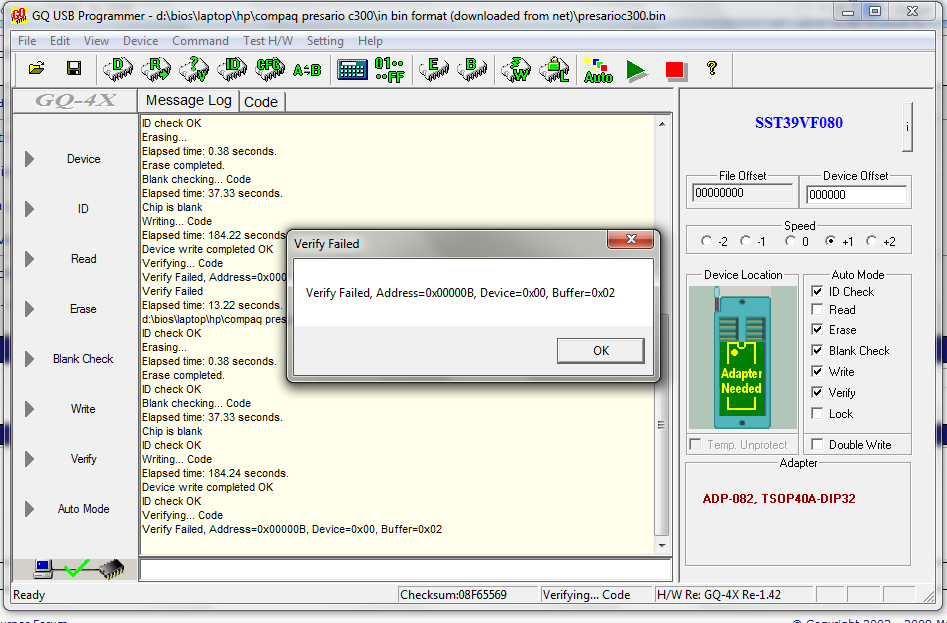

Now i am Getting Another Problum my device does not get verified after writing the code to chip.i am getting the following msg now :
Image Insert:
108.66 KB
as you can see in the background everything goes fine but at the end verifying the code is failed.i tried it with Auto mode and one by one mode.although the device ID is OK now and chip erase , chip blank check and chip writing gets done only verifying the device gets failed.
any suggestions
Thanks in adv. |
Do Searching before Asking, But Asking will never kill you...... |
Edited by - Naughty on 07/17/2013 05:25:06 |
|
|
| Reply #7
Naughty
India
35 Posts |
Posted - 07/17/2013 : 07:41:28
|
OK , my Problem gets Solved, i changed my USB driver version from ver 1.0 to version 2.0, you can see in the background of my Last uploaded Pictures that i have USB Driver ver 1.0 before.
change the j3 jumper on the ADP-082 to 3v Side (i think this is the main Cause to get it worked)
Change the Speed to 2 from 4 (Selected many buy my heart says 2)
Do everything in a Single shot so can't say which option Helped me to get my device verified

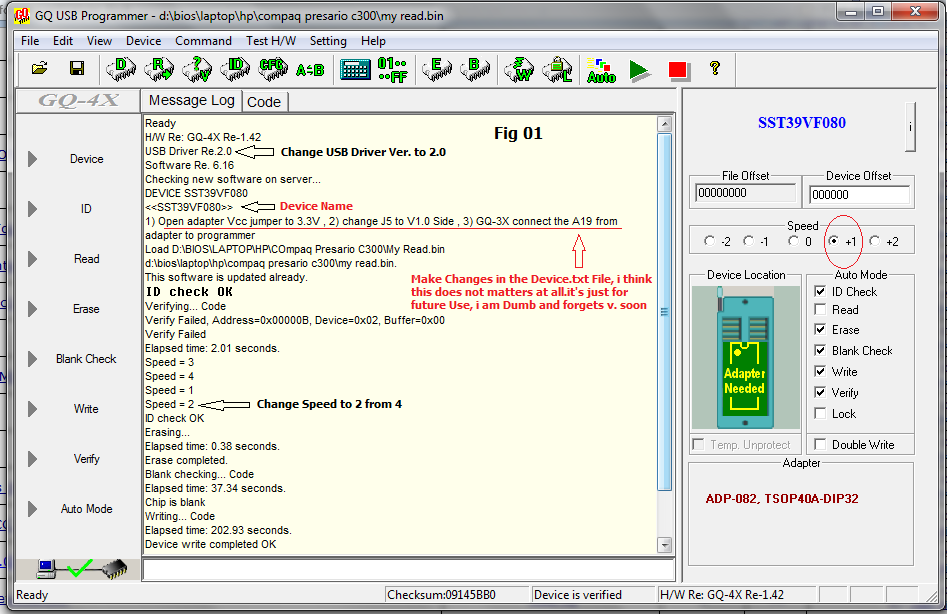

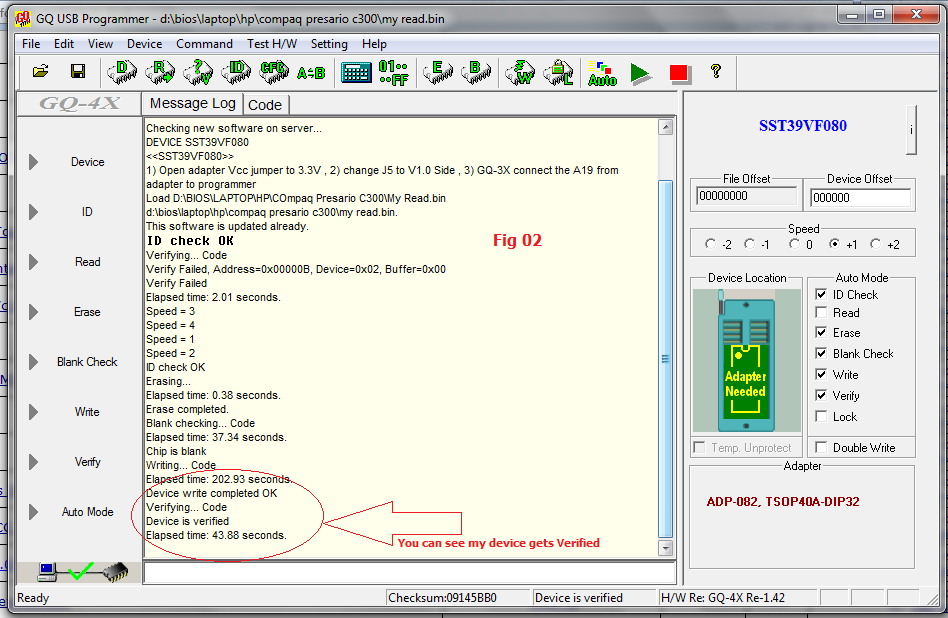

Uploading two Pictures / Screen Shots coz all the data area can't fit in a Single Windows
Image Insert:
108.37 KB
Image Insert:
105.01 KB |
Do Searching before Asking, But Asking will never kill you...... |
|
|
| |
