The Newest model: New Generation Automatic True USB Willem PRO 40pin Universal Programmer Set Eprom programmer, Willem programmer

(Hardware version: GQ-4X4; latest GQUSBprog software version)

You are purchasing directly from the developer & manufacturer of True USB Willem universal programmer series: better pricing and better support.

Supported Device List Click Here

Video on GQ-4x4 USB driver and software installation for Windows 10

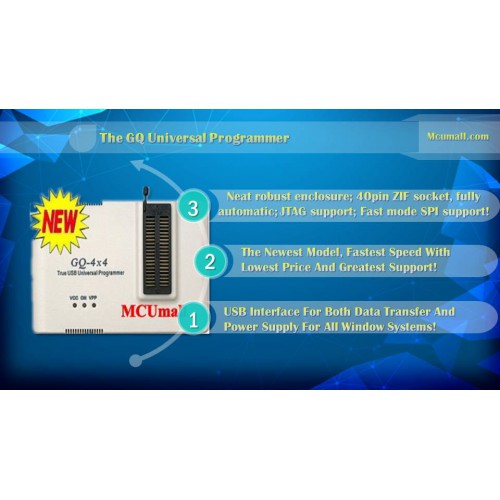

GQ-4X4 is the newest model of True USB Willem Universal Programmer series from MCUmall Electronics Inc Canada.

With its complete new professional design, True USB PRO 40pin Willem programmer GQ-4X is the first & exclusive Willem universal programmer in the market that owns the unique features:

Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support;
Support O/S: Windows XP,Vista,7,8,8.1,10, 11 32bit/64bit;
Real True USB interface for both data transfer and power supply;
High speed/fastest; most-user-friendly; simplest-to-use;
Software update regularly; free lifetime software upgrade/download;
Multi-languages support capability: Chinese, Czech, English, French, German, Spanish, Portugues

The application-oriented & application-enhanced design facilitates GQ-4X4 supports thousands of most popular application devices (growing) and ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset, mileage, satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, xBox,Wii gaming machines EPROM duplicate, Altera Xilinx JTAG, PIC/MCU development, newer laptop technology and newer desktop PC etc.

It has an outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44, TSOP48, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, SST39VF3201, TE28F102, 27C1024, 27C1028, HD6475,29F800, 29LV800, 29F032...

Key & Unique Features

1. Complete new professional design with own robust enclosure and 40pin ZIF socket

The neat robust enclosure is designed to suit the portable and field convenient applications
40 pin of the ZIF socket supports more chips without the adapter
First and only Willem programmer with 40pin ZIF socket, other models use 32pin ZIF
The software & hardware are Designed/developed by MCUmall Electronics Inc. Canada
Assembled in Canada and post-sales support by MCUmall Electronics Inc.

2. Fully automatic & no manual set-up needed (eliminate all jumpers & DIP-switch)

Fully automatic for efficient use and extends the programmer lifetime
Eliminates all jumpers on board, manual set-up for jumpers is no longer needed (all non-USB willem use jumpers: 16 jumpers on PCB5.0C, 48 jumpers on willem 1.5)
Eliminate the onboard DIP switch, manual set-up for DIP switch is no longer needed.
This also makes much easier & very simple to use for end users.
Plug-and-play reduces the learning curve and save you precious time.

3. Fast mode SPI programming & JTAG support wider the application

Useful for motherboard BIOS in-circuit upgrade
Altera Xilinx CPLD JTAG support

4. True USB data transfer interface with PC/LapTop for newer laptop use as well as portable application

Uses only one USB cable to connect with PC/Laptop USB port for both data transfer and power supply. The bulky DB25 data cable is eliminated & no longer needed for data transfer between PC and programmer board
It is True/Real USB data transmission protocol (USB-USB), Not via Fake/Pseudo-USB data communication.
Fake/Pseudo USB data transfer needs the middle serial or parallel port conversion: USB-Serial-USB conversion or LPT-USB conversion, this limits the programming speed significantly.
GQ-4X4 features the same revolutionary data interface as GQ-3X, the True USB data transmission with PC/LapTop.

5. Exponentially speed increase up to 20 times faster

Connects PC via a high-speed USB link, provides the fastest possible data transfer rates for programming/reading data from target IC's.
It is capable of being up to 20 times faster than other existing printer port willem (parallel LPT willems: PCB6.xx, PCB5.0C, PCB4.5C) programmers on reading & verification a high-density flash device, this significantly saves your time and increases work efficiency as well as facilitates small scale production
Assembly language written programming algorithms run fast and reliable. Not affected by the PC speed changes and Windows O/S variations.

6. Dual power supply capability: USB port & AC/DC and automatic voltage control

Vcc supported among 3.6V, 5V, 5.5V, 6.5V
On-Board MCU for stable performance & automatic/accurate voltage control
Works best among other programmers for EPROMs

7. The GQUSB software is specially developed for True USB willem programmers GQ-4X,GQ-3X, GQ-2X.

Free Lifetime software download/upgrade, please click here for software revision history
Updates software and device algorithm regularly
Free IC device updates via web
Supports O/S: WinXP 64bit, Vista 32bit, Vista 64bit Windows7 32bit 64bit, Windows 8 32bit 64bit, Windows 8.1 32bit 64bit, Windows 10 32bit 64bit, Windows 11 32bit 64bit
Advanced software engineered to provide most user-friendly interface & simplest and easiest-to-use Willem programmer version to save time and comfort to use
Multi-language support, such as: English, German, Spanish, Chinese, French, Cezh, Portugues
Programming history memory function on-board
Supports most popular ECU, Satellite,xBox, Wii, BIOS, EPROM chips: SST39VF3201, TE28F102, 27C1024, 29F800, 29LV800...
Supports the chips that LPT Willem are not capable of supporting, like 24RF08,28F102,87C257 and more
Supports TSOP48, PSOP44,16bit EPROM chips that 40 pin TOP, EasyPro, Wellon are not capable of supporting
Supports 25LF SPI series, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84,29F032...
Allows end users to add in their own chips/devices easily (editing .txt file)

8. Working with the adapters further expands the supported devices list

Accommodate the existing adapters (GQ-3X/2X and parallel LPT willem adapter)
Packaging supported: TSOP48 (16bit & 8 bit), TSOP32, PSOP44, DIP8 to DIP40, PLCC, SOP,SOIC, MCS-51+, PLCC84, and etc.

9. Covers the widest application areas among all Willem programmers

Car/automotive ECU chip tuning, airbag reset, mileage, memory device code read/write/program
Satellite large capacity device applications
On-spot/Field/portable applications & Small scale production
Motherboard BIOS in-circuit upgrading
Xbox, Wii gaming chip freshing & upgrading
PIC & MCU programming & development
Duplicate EPROM chips & Game machine repairing
Copier/Fax machine/printer main board repairing
VCD,DVD, color TV maintaining& repairing
