Use software Re 6.36 or later version:<BR><BR>

<B>Pin connection example(M35080V6/M35080VP/08ODOWQ):</B><BR><BR>

<font color=darkgreen>(Note: Chip "M35080 3" and "M35080 6"  do not need this pin remapping.Use ADP-004 only instead.)
</font>

<BR><BR>

For M35080V6/M35080VP/08ODOWQ chips, the connection need to be remapped by followings:<BR><BR>

<B>SOIC8 ---- DIP adapter</B><BR>---------------------<BR>
pin 1 ---- pin 4<BR>
pin 2 ---- pin 1<BR>
pin 3 ---- pin 3<BR>
pin 4 ---- pin 2<BR>
pin 5 ---- No connection<BR>
pin 6 ---- pin 6<BR>
pin 7 ---- pin 5<BR>
pin 8 ---- pin 8<BR><BR><BR>

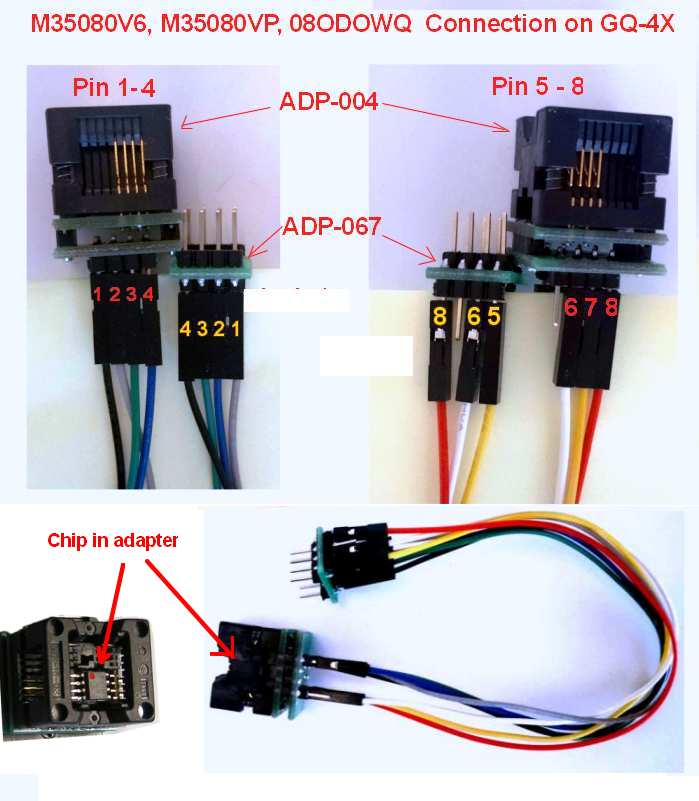

<img src="http://www.mcumall.com/support/M35080VP_Connection.jpg">
<HR>

<B>Pin connection example(BR9010F,BR9020F,BR9040F):</B><BR><BR>
SOIC8 ---- DIP adapter<BR>
---------------------<BR>
pin 1 ---- pin 7
<BR>pin 2 ---- pin 8
<BR>pin 3 ---- pin 1
<BR>pin 4 ---- pin 2
<BR>pin 5 ---- pin 3
<BR>pin 6 ---- pin 4
<BR>pin 7 ---- pin 5
<BR>pin 8 ---- pin 6<BR><BR>

<HR>

<B>Pin connection example(AT45DB041D):</B><BR><BR>
SOIC8 ---- DIP adapter<BR>
---------------------
<BR>pin 6 ---- pin 8
<BR>pin 3 ---- pin 7
<BR>pin 2 ---- pin 6
<BR>pin 1 ---- pin 5
<BR>pin 7 ---- pin 4
<BR>pin 5 ---- pin 3
<BR>pin 8 ---- pin 2
<BR>pin 4 ---- pin 1
