mship2012

USA
1 Posts

Posted - 01/14/2017 :  10:08:46  Show Profile  Reply with Quote
Hello All,
I'd like device support added for the following:

EE type: NDM457C
EEPROM: $0000-$0005
ROM: $0006-$001F
EEPROM1: $0020-$003F

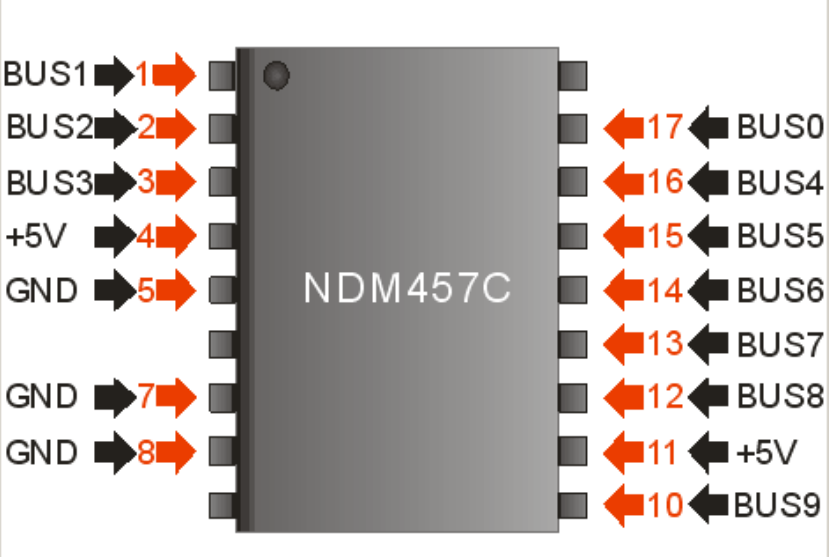

I could not find a datasheet on it, but I've attached the only picture I can find of the pin out. I am using an older generation GQ-4X. Any help or advice would be much appreciated.


Image Insert:

104670 bytes

Edited by - mship2012 on 01/14/2017 10:23:29
