werejag

USA
75 Posts
Posted - 01/13/2008 :  04:07:19  Show Profile  Reply with Quote
these 4 st m27c4002-10f1 eproms seem not to beable to be flashed. could it be a program fix?
Reply #1

ZLM

2945 Posts
Posted - 01/13/2008 :  09:23:42  Show Profile  Reply with Quote
It should be OK after you fix the 1X10K resister solder issue.
Go to Top of Page
Reply #2

werejag

USA
75 Posts
Posted - 01/13/2008 :  11:10:46  Show Profile  Reply with Quote
Device write failed at address: 0x000000, Buffer=0x10 Device=0x00
Device write error.

on all 4 these
and it was fixed before posting
Go to Top of Page
Reply #3

werejag

USA
75 Posts
Posted - 01/14/2008 :  06:19:28  Show Profile  Reply with Quote
any ideas?
Go to Top of Page
Reply #4

ZLM

2945 Posts
Posted - 01/14/2008 :  12:51:24  Show Profile  Reply with Quote
Place a blank EPROM, do blank check, see if it do the blank check correctly.

What version adapter you are using? Any pictures available for your setup? So that I can take a close look on your setup.
Go to Top of Page
Reply #5

werejag

USA
75 Posts
Posted - 01/14/2008 :  12:54:08  Show Profile  Reply with Quote
blank test worked when the resistor array had crude in it. lol so thats not much of a check
Go to Top of Page
Reply #6

werejag

USA
75 Posts
Posted - 01/14/2008 :  13:04:11  Show Profile  Reply with Quote
the adaptor just says 16 bit eprom adaptor and the website url

for:
27c210
27c1024
27c2048
27c2002
27c4096
27c4002
Go to Top of Page
Reply #7

werejag

USA
75 Posts
Posted - 01/14/2008 :  13:30:22  Show Profile  Reply with Quote
tried another adaptor i got with my original willem from here still no go. its just says 16bit and japenses chars on it
Go to Top of Page
Reply #8

werejag

USA
75 Posts
Posted - 01/15/2008 :  04:34:20  Show Profile  Reply with Quote
could this be a jedec or non jedec issue?
Go to Top of Page
Reply #9

ZLM

2945 Posts
Posted - 01/15/2008 :  11:06:09  Show Profile  Reply with Quote
It seems the adapter issue since you tested on a parallel willem programmer.
Go to Top of Page
Reply #10

werejag

USA
75 Posts
Posted - 01/15/2008 :  15:08:04  Show Profile  Reply with Quote
damni keep getting adapters from you and i keep not getting use of these to program all the chips like they say. so buy a new adaptor???shesh hell
Go to Top of Page
Reply #11

werejag

USA
75 Posts
Posted - 01/15/2008 :  16:01:53  Show Profile  Reply with Quote
hxxp://img220.imageshack.us/img220/3519/sd530571fe0.jpg
hxxp://img162.imageshack.us/img162/8418/sd530572ka4.jpg

wtf am i to do now
Edited by - werejag on 01/15/2008 16:02:13
Go to Top of Page
Reply #12

werejag

USA
75 Posts
Posted - 01/16/2008 :  01:28:44  Show Profile  Reply with Quote
do i need to buy yet another adaptor just for this
Go to Top of Page
Reply #13

werejag

USA
75 Posts
Posted - 01/16/2008 :  02:32:12  Show Profile  Reply with Quote
ok so ill have to find a zif socket that can fit that spot. its to close to the other zif right now
Go to Top of Page
Reply #14

werejag

USA
75 Posts
Posted - 01/16/2008 :  03:49:15  Show Profile  Reply with Quote
i waited months to get the parrelel willem fixed or tested with the 27c160s only to be told that the willem i bought here will not support it and buy the gq-3x from here. now i find what i was given in return has problems also. this is starting to tee me off.
Edited by - werejag on 01/16/2008 04:19:00
Go to Top of Page
Reply #15

werejag

USA
75 Posts
Posted - 01/16/2008 :  14:08:42  Show Profile  Reply with Quote
i runing thru many 27c4002s so a dip would be destroyed after short time
Go to Top of Page
Reply #16

werejag

USA
75 Posts
Posted - 01/17/2008 :  04:05:19  Show Profile  Reply with Quote
zlm so i need to buy yet another adaptor?
Go to Top of Page
Reply #17

tps_star

58 Posts
Posted - 01/17/2008 :  06:24:11  Show Profile  Reply with Quote
Image Insert:
www.mcumall.com/forum/uploaded/tps_star/20081177240_eprom16bit_40_42_44.jpg" border="0">
10.63 KB
Go to Top of Page
Reply #18

tps_star

58 Posts
Posted - 01/17/2008 :  06:27:16  Show Profile  Reply with Quote
with this two adapter read&program ok

Image Insert:
www.mcumall.com/forum/uploaded/tps_star/200811772659_16bit.jpg" border="0">
112.09 KB
Go to Top of Page
Reply #19

ZLM

2945 Posts
Posted - 01/17/2008 :  14:25:42  Show Profile  Reply with Quote
Hi werejag,

You do not need a new adapter. You only testedthe middle one right?

The first one and last one should work too.

The first one you need to solder a ZIF socket or a DIP socket.
Go to Top of Page
Reply #20

werejag

USA
75 Posts
Posted - 01/17/2008 :  15:27:14  Show Profile  Reply with Quote
no zif socket fits in that due to the pins being too close to the other.

and the other non zif board didnt like the chips
Go to Top of Page
Reply #21

werejag

USA
75 Posts
Posted - 01/17/2008 :  15:33:04  Show Profile  Reply with Quote
you sent me that one zif socket version for the 27c160s.
Go to Top of Page
Reply #22

ZLM

2945 Posts
Posted - 01/17/2008 :  16:05:15  Show Profile  Reply with Quote
If that one works for 27C160, then it should work on 27C4002.
If ZIF does not fit, then just solder a DIP socket on that location will be fine.
Go to Top of Page
Reply #23

werejag

USA
75 Posts
Posted - 01/18/2008 :  07:57:57  Show Profile  Reply with Quote
well ill have to find a zif or mod one to fit the narrow spot a socket wont last long
Go to Top of Page
Reply #24

werejag

USA
75 Posts
Posted - 01/19/2008 :  11:58:38  Show Profile  Reply with Quote
ok took off the zif sanded its edge so i can place a 40pin zif next to it. both fit perfectly with just enough space to move the levers.

but i still get the same error.

so what is the problem?
Go to Top of Page
Reply #25

werejag

USA
75 Posts
Posted - 01/19/2008 :  13:59:23  Show Profile  Reply with Quote

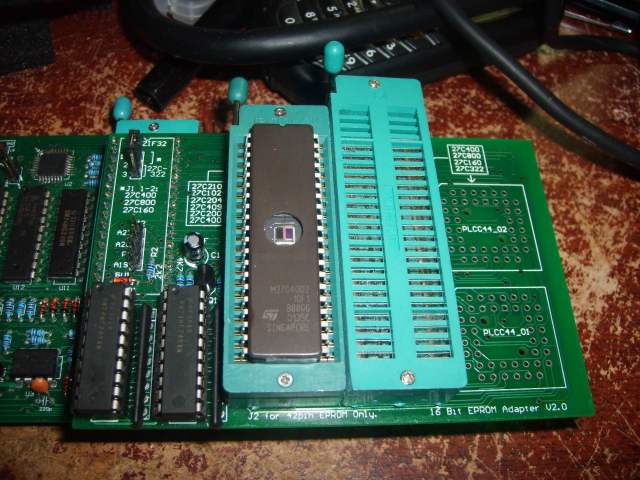

Image Insert:

112.09 KB
Edited by - werejag on 01/19/2008 14:01:54
Go to Top of Page
Reply #26

ZLM

2945 Posts
Posted - 01/19/2008 :  23:37:24  Show Profile  Reply with Quote
That is strange. If all three adapters you have are same problem on two kind of programmer.
Go to Top of Page
Reply #27

werejag

USA
75 Posts
Posted - 01/20/2008 :  02:38:40  Show Profile  Reply with Quote
ill try the parrel programmer but i shouldnt have to
Go to Top of Page
Reply #28

werejag

USA
75 Posts
Posted - 01/20/2008 :  13:36:34  Show Profile  Reply with Quote
just did a 27c160 it works perfectly .... so i declare this adaptor the problem. wow yet another adaptor ill have to get. im geting sick of the lack of testing when these adaptors are made.

i might have to buy from another place seems im not having luck with any adapter from here.

but im hoping to still beable to fix it. and stay here for adapters
Edited by - werejag on 01/20/2008 14:03:30
Go to Top of Page
Reply #29

werejag

USA
75 Posts
Posted - 01/20/2008 :  14:01:58  Show Profile  Reply with Quote
this has to be either a software glitch or the adaptor i got from here.
Go to Top of Page
Reply #30

ZLM

2945 Posts
Posted - 01/21/2008 :  10:48:57  Show Profile  Reply with Quote
It is hard to believe this adapter works for 27C160 but not 27C4002. They are sharing same circuit.
Here is the schematic of this adapter, please check if anything wrong on the soldering/connection.
http://www.mcumall.com/support/16BitSchematic.pdf

If no error found, then check 27C4002 if they are all good to program.
Go to Top of Page
Reply #31

werejag

USA
75 Posts
Posted - 01/21/2008 :  11:37:35  Show Profile  Reply with Quote
i have 6 27c4002 from two different sources. it theoretically impossible for all 6 to not program. ill look at the schematic
Edited by - werejag on 01/21/2008 11:39:41
Go to Top of Page
Reply #32

werejag

USA
75 Posts
Posted - 01/21/2008 :  14:02:50  Show Profile  Reply with Quote
m27c4002-12f1 work but the newer m27c4002-10f1 do not
Go to Top of Page
Reply #33

werejag

USA
75 Posts
Posted - 01/21/2008 :  15:40:44  Show Profile  Reply with Quote
ill contact my supplier and get em replaced
Go to Top of Page
Reply #34

brchip

Brazil
23 Posts
Posted - 01/13/2014 :  14:25:28  Show Profile  Reply with Quote
quote:
Originally posted by ZLM

It should be OK after you fix the 1X10K resister solder issue.


What is this 1K resistor issue??
Go to Top of Page
